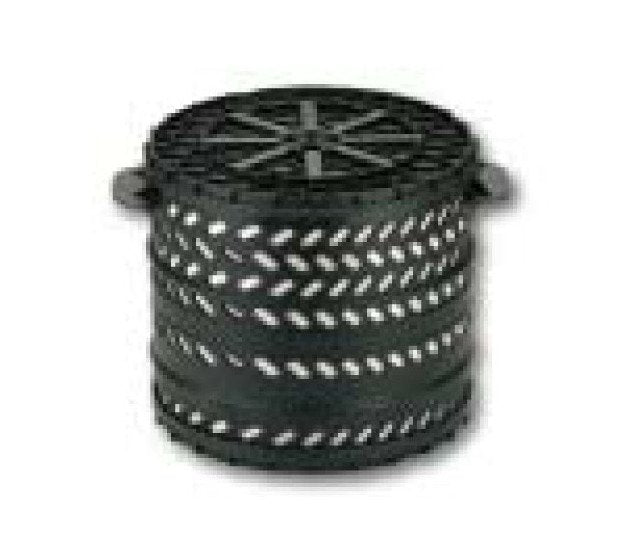

MANN + HUMMEL Long-Life EDM Filters - Electric Discharge Machining Filter Solutions

Name: MANN + HUMMEL Long-Life EDM Filters - Electric Discharge Machining Filter Solutions
Brand: EDM Sales & Supplies, Inc.
SKU: MAN-381e10
Price: 299.99 USD
Availability: OutOfStock

SKU:MAN-381e10

Enhance precision and productivity in EDM with MANN + HUMMEL Long-Life Electrical Discharge Machining Filters.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

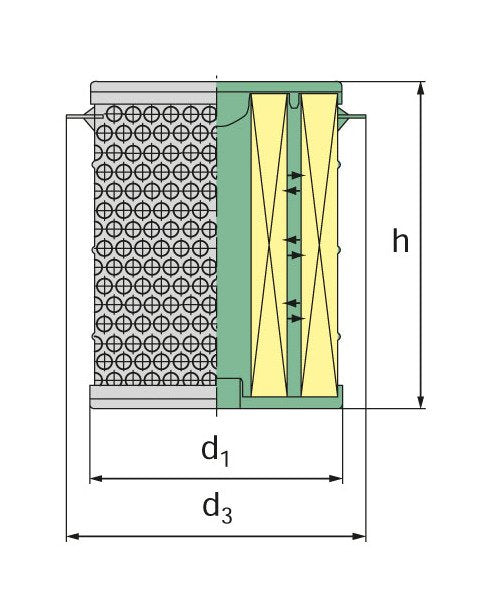

Enhance precision and productivity with MANN + HUMMEL Long-Life Electrical Discharge Machining (EDM) Filters. Crafted with a Design F plastic construction, these filters offer a Filter Surface Area of 138 ft² | 128000 cm² and a Filter Fineness of 10 µm. The dimensions d1: 13.4 in | 340 mm, d3: 15.9 in | 404 mm, and h: 11.8 in | 300 mm ensure compatibility with your EDM applications. With a Flow Direction of Inside to Outside and Connection Thread G 3/4 in, these filters are ideal for wire and sink erosion applications.

Product Specifications

Note 0

For wire and sink erosion.

Specifications Connection Thread

G 3/4 in

Specifications Design

Specifications Dimension D1

13.4 in | 340 mm

Specifications Dimension D3

15.9 in | 404 mm

Specifications Dimension H

11.8 in | 300 mm

Specifications Filter Fineness

10 µm

Specifications Filter Surface Area

138 ft² | 128000 cm²

Specifications Flow Direction

Inside to Outside

Specifications Material

Plastic
