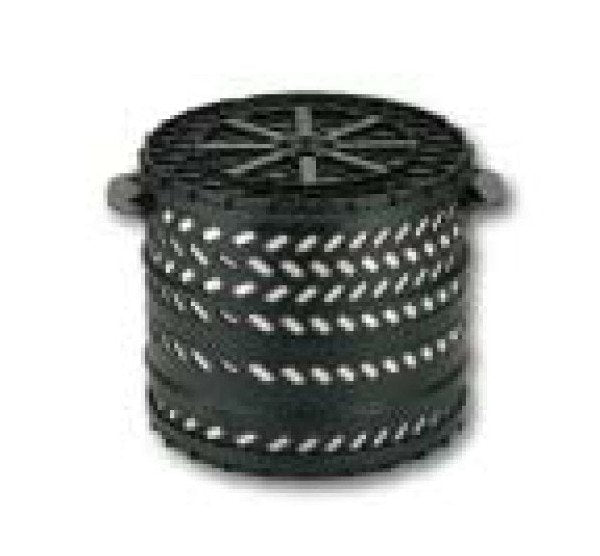

MANN + HUMMEL Triple Layer EDM Filters
MANN + HUMMEL Triple Layer EDM Filters
SKU:MAN-100229
Boost EDM efficiency with MANN + HUMMEL Triple Layer Filters - designed for wire and sink erosion with 145 ft² surface area and 1-2 µm fineness.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
MANN + HUMMEL Triple Layer EDM Filters
$129.99
Quantity: 1
Claim Your Seller Account
MANN + HUMMEL Triple Layer EDM Filters
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your electrical discharge machining efficiency with MANN + HUMMEL Triple Layer EDM Filters. With a filter surface area of 145 ft² (135000 cm²) and a filter fineness of 1 to 2 µm, these filters are designed for wire and sink erosion. The plastic construction ensures durability, while the G 3/4 connection thread facilitates easy installation. Flowing inside to outside, these filters meet high industry standards for precision and functionality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0
For wire and sink erosion.
Specifications Connection Thread
G 3/4 in
Specifications Design
A

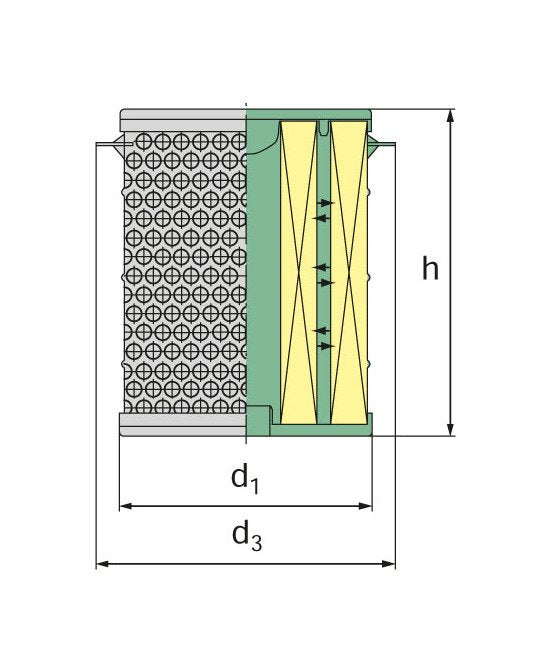

Specifications Dimension D1
13.4 in | 340 mm
Specifications Dimension D3
15.9 in | 404 mm
Specifications Dimension H
11.8 in | 300 mm
Specifications Filter Fineness
1 to 2 µm
Specifications Filter Surface Area
145 ft² | 135000 cm²
Specifications Flow Direction
Inside to Outside
Specifications Material
Plastic
