MANN + HUMMEL Triple Layer EDM Filters - High Precision Metal Filter for Electrical Discharge Machining (EDM) Systems

Name: MANN + HUMMEL Triple Layer EDM Filters - High Precision Metal Filter for Electrical Discharge Machining (EDM) Systems
Brand: EDM Sales & Supplies, Inc.
SKU: MAN-5a86d2
Price: 499.99 USD
Availability: OutOfStock

SKU:MAN-5a86d2

Enhance EDM system performance with MANN + HUMMEL Triple Layer EDM Filters. Precision filters for wire and sink erosion applications.

$499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance the performance of your EDM systems with the MANN + HUMMEL Triple Layer EDM Filters. Featuring a robust metal construction, a large filter surface area of 99 ft² ensuring efficient filtration, and a fine filter fineness of 1 to 2 µm, these filters are designed for wire and sink erosion applications. The inside to outside flow direction, along with black corrosion-resistant coating, enhances longevity and reliability. Compliant with federal procurement standards, these filters meet the stringent requirements of institutional buyers in the manufacturing and engineering sectors.

Product Specifications

Note 0

For wire and sink erosion.Painted in black corrosion resistant.

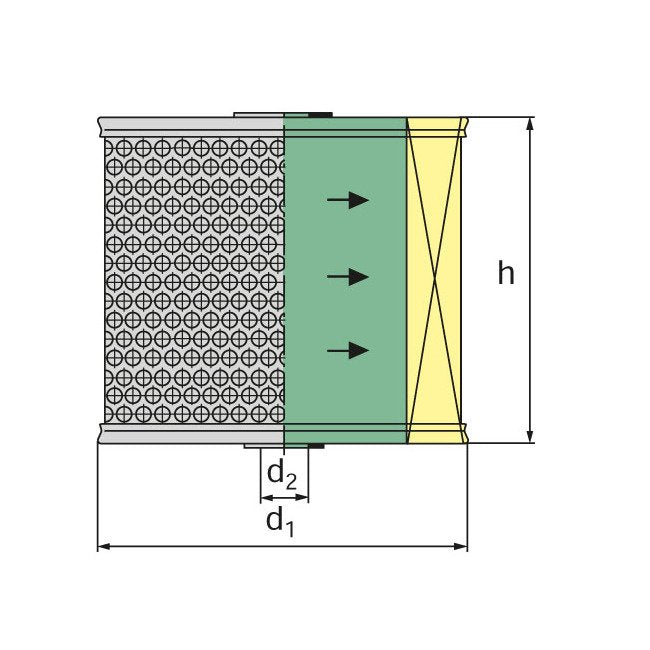

Specifications Design

Specifications Dimension D1

13.4 in | 340 mm

Specifications Dimension D2

1.8 in | 47.5 mm

Specifications Dimension H

11.8 in | 300 mm

Specifications Filter Fineness

1 to 2 µm

Specifications Filter Surface Area

99 ft² | 92000 cm²

Specifications Flow Direction

Inside to Outside

Specifications Material

Metal
