Manual Hydraulic Pumps - P-LR Series
Manual Hydraulic Pumps - P-LR Series
SKU:HYD-426305
Versatile and durable Manual Hydraulic Pumps for pressures up to 5000 PSI, with adjustable relief valves and manual pressure release options.
Regular price
$442.00
Regular price
Sale price
$442.00
Unit price
per
Initiate Order
Manual Hydraulic Pumps - P-LR Series
$442.00
Quantity: 1
Claim Your Seller Account
Manual Hydraulic Pumps - P-LR Series
$442.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

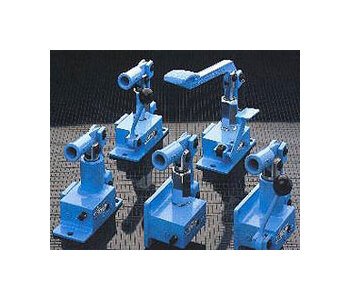

The Manual Hydraulic Pumps - P-LR Series are robust, versatile pumps designed for use within hydraulic systems with built-in reservoirs. Featuring adjustable overload relief valves and manual pressure release valves, these single-piston pumps are ideal for applications requiring pressures up to 5000 PSI. Options include base or flange mounts, hand or foot-operated levers, and screw or CAM pressure release valves. Steel or stainless steel versions cater to various environments, making them suitable for medical, food handling, and corrosive settings. With a one-year limited warranty, these pumps offer reliable performance and ease of maintenance.
Product Specifications
Specifications Adjustable Overload Relief Valve
Yes
Specifications Body Material
Steel
Specifications Inlet Port Size Nptf
3/8
Specifications Lever Load Per 100 Psi
2.8 lb
Specifications List Price
442 USD
Specifications Manual Pressure Release Valve
Yes
Specifications Maximum Pressure Rating
5000 psi
Specifications Mounting
Base Mounted
Specifications Net Weight
15 lb
Specifications Oil Reservoir
false
Specifications Operating Lever Size
24 in
Specifications Outlet Port Size Nptf
3/8
Specifications Piston
Hard Chrome Plated
Specifications Piston Diameter
3/4 in
Specifications Release
Screw Release
Specifications Series
P-LR
Specifications Volume Per Stroke
0.66 in³
Technical Information 0
Limited WarrantyAll Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem.Technical DataLight hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid.All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
