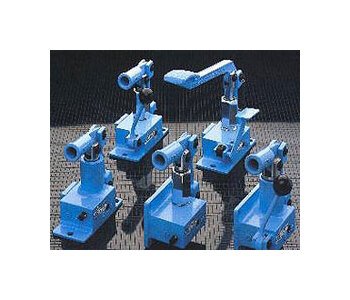

Manual Hydraulic Pumps - P-PL Series
Manual Hydraulic Pumps - P-PL Series
SKU:HYD-1c6a72
Rugged and versatile manual hydraulic pumps without reservoirs, designed for reliable performance in various applications.
Regular price
$567.00
Regular price
Sale price
$567.00
Unit price
per
Initiate Order
Manual Hydraulic Pumps - P-PL Series
$567.00
Quantity: 1
Claim Your Seller Account
Manual Hydraulic Pumps - P-PL Series
$567.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Manual Hydraulic Pumps - P-PL Series are rugged, versatile single-piston pumps designed for use in hydraulic systems without reservoirs. These pumps feature adjustable overload relief valves, manual pressure release valves, and are available in base or flange mounts. With a durable steel body and hard chrome plated piston, these pumps offer pressures up to 500 psi, making them ideal for various applications. Optional stainless steel versions are excellent for medical, food handling, or corrosive environments. Designed for ease of use and maintenance, these pumps deliver reliable performance in demanding settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Adjustable Overload Relief Valve
Yes
Specifications Body Material
Steel
Specifications Inlet Port Size Nptf
3/8
Specifications Lever Load Per 100 Psi
20.0 lb
Specifications List Price
567 USD
Specifications Manual Pressure Release Valve
Yes
Specifications Maximum Pressure Rating
500 psi
Specifications Mounting
Flange Mounted
Specifications Net Weight
16 lb
Specifications Oil Reservoir
false
Specifications Operating Lever Size
24 in
Specifications Outlet Port Size Nptf
3/8
Specifications Piston
Hard Chrome Plated
Specifications Piston Diameter
2 in
Specifications Release
Screw Release
Specifications Series
P-PL
Specifications Volume Per Stroke
4.71 in³
Technical Information 0
Limited WarrantyAll Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem.Technical DataLight hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid.All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
