Manual Hydraulic Pumps - P-PL Series w/o Reservoirs
Manual Hydraulic Pumps - P-PL Series w/o Reservoirs
SKU:HYD-3e195f
Robust Manual Hydraulic Pumps for versatile hydraulic pressure development, up to 10,000 PSI, in steel or stainless steel variants.
Regular price
$616.00
Regular price
Sale price
$616.00
Unit price
per
Initiate Order
Manual Hydraulic Pumps - P-PL Series w/o Reservoirs
$616.00
Quantity: 1
Claim Your Seller Account
Manual Hydraulic Pumps - P-PL Series w/o Reservoirs
$616.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

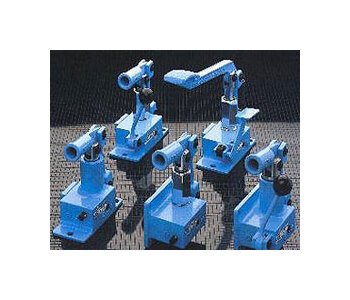

The Manual Hydraulic Pumps - P-PL Series without Reservoirs are robust and versatile single-piston pumps designed for use in hydraulic systems with built-in reservoirs. These pumps feature adjustable overload relief valves, manual pressure release valves with screw, cam, or foot release options, and can deliver pressures up to 10,000 PSI. Available in steel or stainless steel variants, the P-PL pumps are ideal for various applications including medical, food handling, and corrosive environments. With options for different mounts, activation methods, and pressure settings, these pumps offer flexibility and reliability in hydraulic pressure development.
Product Specifications
Specifications Adjustable Overload Relief Valve
Yes
Specifications Body Material
Steel
Specifications Inlet Port Size Nptf
3/8
Specifications Lever Load Per 100 Psi
1.23 lb
Specifications List Price
616 USD
Specifications Manual Pressure Release Valve
Yes
Specifications Maximum Pressure Rating
10000 psi
Specifications Mounting
Flange Mounted
Specifications Net Weight
15 lb
Specifications Oil Reservoir
false
Specifications Operating Lever Size
24 in
Specifications Outlet Port Size Nptf
3/8
Specifications Piston
Hard Chrome Plated
Specifications Piston Diameter
1/2 in
Specifications Release
Cam Release
Specifications Series
P-PL
Specifications Volume Per Stroke
0.29 in³
Technical Information 0
Limited WarrantyAll Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem.Technical DataLight hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid.All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
