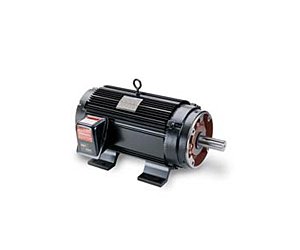

Marathon Black Max Inverter Duty Electric Motor
Marathon Black Max Inverter Duty Electric Motor
SKU:ELE-14dec7
Optimized for inverter applications, the Marathon Black Max Electric Motor offers a 1000:1 Constant Torque speed range with MAX GUARD® insulation system. Built for durability and versatility.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Marathon Black Max Inverter Duty Electric Motor
$799.99
Quantity: 1
Claim Your Seller Account
Marathon Black Max Inverter Duty Electric Motor
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Black Max Inverter Duty Electric Motor is designed for inverter or vector applications requiring up to a 1000:1 Constant Torque speed range. With a MAX GUARD® Class F insulation system, this motor ensures continuous operation in dusty or dirty environments. Offering constant torque from 0 to base speed and continuous horsepower, it is optimized for IGBT inverter operation. Featuring a Totally Enclosed Non-Ventilated design with C-Face and Rigid Base, this motor is UL Recognized and CSA Certified with a three-year warranty.
Product Specifications
Applications 0
Material HandlingMachine ToolsConveyorsCranesHoistsMetal ProcessingTest StandsPumpsCompressorsTextiles ProcessingOther Industrial Machinery
Features 0
MAX GUARD® Class F insulation system.Constant Torque operation from 0 to base speed on Vector Drive.Constant Horsepower to twice base RPM.Continuous duty at 40° C ambient.Optimized for operation with IGBT inverter (NEMA Design A).Normally closed thermostats (one per phase).Removable Rigid Base on some models, as noted.Ball bearing.Encoder and brake provisions included on opposite drive end (maximum 10 Ib-ft brake, see Modifications and/or accessory Kits sections).UL Recognized and CSA Certified.Three year warranty.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Approx Weight
118 lbs
Specifications Category
Inverter Duty
Specifications Dim C
20.04
Specifications Frame
213TC
Specifications Full Load Ampere Fla
4.7 amps | 9.4 amps
Specifications Horsepower
3
Specifications Manufacturer
Marathon Electric
Specifications Model Number
213THTL7776
Specifications Motor Type
Black Max® Vector Duty - 1000:1 Constant Torque
Specifications Multiplier Symbol
E3
Specifications Over Load
TSTAT
Specifications Phase
3
Specifications Rpm
1200 rpm
Specifications Stock Model
Yes
Specifications Style
Totally Enclosed Non-Ventilated, C-Face with Rigid Base
Specifications Voltage
230 volts | 460 volts
