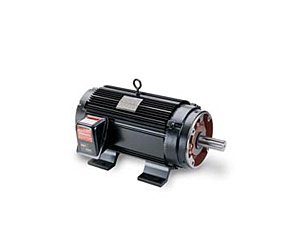

Marathon Black Max Inverter Duty Electric Motor
Marathon Black Max Inverter Duty Electric Motor
SKU:ELE-9f6882
Marathon Black Max Inverter Duty Motor - Constant Torque range, Class F insulation, UL/CSA Certified
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Marathon Black Max Inverter Duty Electric Motor
$2,899.99
Quantity: 1
Claim Your Seller Account
Marathon Black Max Inverter Duty Electric Motor
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Black Max Inverter Duty Electric Motor is engineered for inverter or vector applications requiring a 1000:1 Constant Torque speed range. With a MAX GUARD® Class F insulation system, it ensures continuous operation from 0 to base speed on Vector Drive. Featuring a Totally Enclosed Non-Ventilated, C-Face with Rigid Base design, this motor offers Constant Horsepower to twice base RPM and is optimized for operation with IGBT inverters. It meets UL Recognized and CSA Certified standards, providing a three-year warranty for reliability in various industrial applications.
Product Specifications
Applications 0
Material HandlingMachine ToolsConveyorsCranesHoistsMetal ProcessingTest StandsPumpsCompressorsTextiles ProcessingOther Industrial Machinery
Features 0
MAX GUARD® Class F insulation system.Constant Torque operation from 0 to base speed on Vector Drive.Constant Horsepower to twice base RPM.Continuous duty at 40° C ambient.Optimized for operation with IGBT inverter (NEMA Design A).Normally closed thermostats (one per phase).Removable Rigid Base on some models, as noted.Ball bearing.Encoder and brake provisions included on opposite drive end (maximum 10 Ib-ft brake, see Modifications and/or accessory Kits sections).UL Recognized and CSA Certified.Three year warranty.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Approx Weight
300 lbs
Specifications Category
Inverter Duty
Specifications Dim C
25.13
Specifications Frame
256TC
Specifications Full Load Ampere Fla
21.0 amps
Specifications Horsepower
20
Specifications Manufacturer
Marathon Electric
Specifications Model Number
256THTNA7036
Specifications Motor Type
Black Max® Vector Duty - 1000:1 Constant Torque
Specifications Multiplier Symbol
E3
Specifications Over Load
TSTAT
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Stock Model
Yes
Specifications Style
Totally Enclosed Non-Ventilated, C-Face with Rigid Base
Specifications Voltage
575 volts
