Marathon Electric Medium Voltage 2300/4000V Dripproof Motors
Marathon Electric Medium Voltage 2300/4000V Dripproof Motors
SKU:ELE-266d6a
Enhance pump and fan performance with Marathon Electric Medium Voltage Motors. Cast iron construction, Class H insulation, and high efficiency ensure reliable operation at 1800 rpm.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
Marathon Electric Medium Voltage 2300/4000V Dripproof Motors
$5,999.99
Quantity: 1
Claim Your Seller Account
Marathon Electric Medium Voltage 2300/4000V Dripproof Motors
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

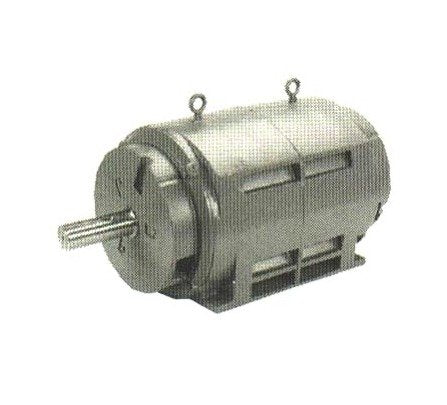

Experience superior reliability and efficiency with Marathon Electric Medium Voltage 2300/4000V Dripproof Motors. Built for general purpose use on pumps and fans, these motors feature cast iron construction, double shielded radial ball bearings, and Class H insulation for exceptional performance and durability. With a 96.5% nominal efficiency, these motors offer reliable operation at 1800 rpm. Designed with industry-leading standards, these motors ensure optimal performance in medium voltage applications.
Product Specifications
Applications 0
PumpsFans
Features 0
Cast iron construction for rigidity and reduced vibration.Double shielded radial ball bearings rated at 100,000 hour B-10 life on direct coupled-loads.Oversized, fabricated steel conduit box.Ball bearings on both ends suitable for direct connection. For belted applications, contact customer service.Class H insulation and form wound coils.Epoxy, 100% solids, Vacuum Pressure Impregnation (VPI) resin.1.15 Service factor (except where noted).
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Category
Medium Voltage
Specifications Frame
510U
Specifications Full Load Ampere Fla
113 amps | 65.0 amps
Specifications Horsepower
500
Specifications Manufacturer
Marathon Electric
Specifications Motor Type
Medium Voltage, 2300/4000 Volt
Specifications Multiplier Symbol
S6
Specifications Nominal Efficiency
96.5
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Service Factor
1.15
Specifications Style
Dripproof, Rigid Base
Specifications Voltage
2300 volts | 4000 volts
