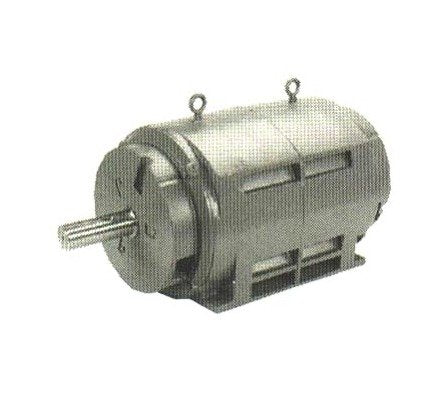

Marathon Electric Medium Voltage 2300/4000V Dripproof Motors
Marathon Electric Medium Voltage 2300/4000V Dripproof Motors
SKU:ELE-e786bd
High-efficiency Marathon Electric Medium Voltage Motors for pumps, fans, and more. Durable construction with double shielded ball bearings.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Marathon Electric Medium Voltage 2300/4000V Dripproof Motors
$2,999.99
Quantity: 1
Claim Your Seller Account
Marathon Electric Medium Voltage 2300/4000V Dripproof Motors
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Medium Voltage Dripproof Motors are designed for pumps, fans, and other applications where medium voltage power is available. With a category of Medium Voltage, these motors by Marathon Electric boast a high nominal efficiency of 96.2%, a durable cast iron construction for reduced vibration, and double shielded radial ball bearings for extended life. These motors feature Class H insulation, form wound coils, and 100% solids VPI resin for enhanced durability and reliability.
Product Specifications
Applications 0
PumpsFans
Features 0
Cast iron construction for rigidity and reduced vibration.Double shielded radial ball bearings rated at 100,000 hour B-10 life on direct coupled-loads.Oversized, fabricated steel conduit box.Ball bearings on both ends suitable for direct connection. For belted applications, contact customer service.Class H insulation and form wound coils.Epoxy, 100% solids, Vacuum Pressure Impregnation (VPI) resin.1.15 Service factor (except where noted).
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Category
Medium Voltage
Specifications Frame
508U
Specifications Full Load Ampere Fla
52.0 amps | 90.0 amps
Specifications Horsepower
400
Specifications Manufacturer
Marathon Electric
Specifications Motor Type
Medium Voltage, 2300/4000 Volt
Specifications Multiplier Symbol
S6
Specifications Nominal Efficiency
96.2
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Service Factor
1.15
Specifications Style
Dripproof, Rigid Base
Specifications Voltage
2300 volts | 4000 volts
