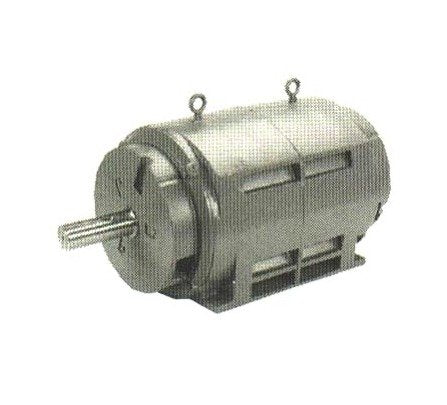

Marathon Electric Medium Voltage 2300/4000V Dripproof Motors
Marathon Electric Medium Voltage 2300/4000V Dripproof Motors
SKU:ELE-c58369
High-performance Marathon Electric Medium Voltage Dripproof Motors for industrial applications. Reliable, efficient, and durable design.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Marathon Electric Medium Voltage 2300/4000V Dripproof Motors
$2,999.99
Quantity: 1
Claim Your Seller Account
Marathon Electric Medium Voltage 2300/4000V Dripproof Motors
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Medium Voltage Dripproof Motors are specially designed for applications requiring medium voltage power, such as pumps and fans. Featuring a robust cast iron construction with double shielded radial ball bearings and Class H insulation, these motors provide reliable performance with reduced vibration. The epoxy resin coating ensures durability, and the 1.15 service factor enhances operational efficiency. With a Frame size of 510U and a horsepower of 500, these motors meet the demands of various industrial settings while maintaining high efficiency and performance standards.
Product Specifications
Applications 0
PumpsFans
Features 0
Cast iron construction for rigidity and reduced vibration.Double shielded radial ball bearings rated at 100,000 hour B-10 life on direct coupled-loads.Oversized, fabricated steel conduit box.Ball bearings on both ends suitable for direct connection. For belted applications, contact customer service.Class H insulation and form wound coils.Epoxy, 100% solids, Vacuum Pressure Impregnation (VPI) resin.1.15 Service factor (except where noted).
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Category
Medium Voltage
Specifications Frame
510U
Specifications Full Load Ampere Fla
120 amps | 69.0 amps
Specifications Horsepower
500
Specifications Manufacturer
Marathon Electric
Specifications Motor Type
Medium Voltage, 2300/4000 Volt
Specifications Multiplier Symbol
S6
Specifications Nominal Efficiency
95.4
Specifications Phase
3
Specifications Rpm
1200 rpm
Specifications Service Factor
1.15
Specifications Style
Dripproof, Rigid Base
Specifications Voltage
2300 volts | 4000 volts
