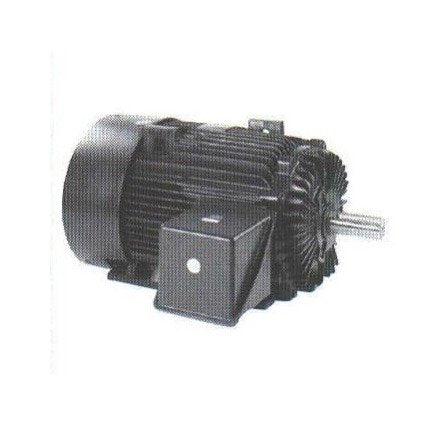

Marathon Electric Medium Voltage 2300/4000V Totally Enclosed Motors
Marathon Electric Medium Voltage 2300/4000V Totally Enclosed Motors
SKU:ELE-9e762b
High-performance Marathon Electric Medium Voltage Motors for industrial applications. Reliable, efficient, and durable in harsh environments.
Regular price
$2,500.00
Regular price
Sale price
$2,500.00
Unit price
per
Initiate Order
Marathon Electric Medium Voltage 2300/4000V Totally Enclosed Motors
$2,500.00
Quantity: 1
Claim Your Seller Account
Marathon Electric Medium Voltage 2300/4000V Totally Enclosed Motors
$2,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Medium Voltage Motors are designed for harsh industrial environments, offering exceptional performance in facilities like chemical plants, pulp and paper mills, and food processing plants. With Blue Chip XRI® Severe Duty construction, these motors provide superior reliability and efficiency. Features include cast iron construction, internal epoxy finish, 100% solids VPI resin, and Class H insulation for enhanced durability and performance. Ideal for applications where medium voltage power is required, these motors deliver reliable operation and long-term cost savings.
Product Specifications
Applications 0
Chemical PlantsPulp and Paper MillsFood ProcessingFoundriesOthers Severe Duty Environments
Features 0
Blue Chip® quality, cast iron construction for rigidity and reduced vibration.Double shielded radial ball bearings rated at 100,000 hour B-10 life on direct coupled-loads.Grease fittings with extended grease tubes.Epoxy, 100% solids, Vacuum Pressure Impregnation (VPI) resin.1.15 Service factor.Internal and external epoxy finish.Ball bearings on both ends suitable for direct connection. For belted applications, contact customer service.Actual test and vibration data included with each motor.Class H insulation and form wound coils.Front and rear cast iron bearing caps.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Category
Medium Voltage
Specifications Dim C
47.94
Specifications Frame
447 | 9TS
Specifications Full Load Ampere Fla
19.8 amps | 34.0 amps
Specifications Horsepower
150
Specifications Manufacturer
Marathon Electric
Specifications Motor Type
Medium Voltage, 2300/4000 Volt, Blue Chip XRI® Severe Duty
Specifications Multiplier Symbol
S6
Specifications Nominal Efficiency
93.6
Specifications Phase
3
Specifications Rpm
3600 rpm
Specifications Service Factor
1.15
Specifications Style
Totally Enclosed, Rigid Base
Specifications Voltage
2300 volts | 4000 volts
