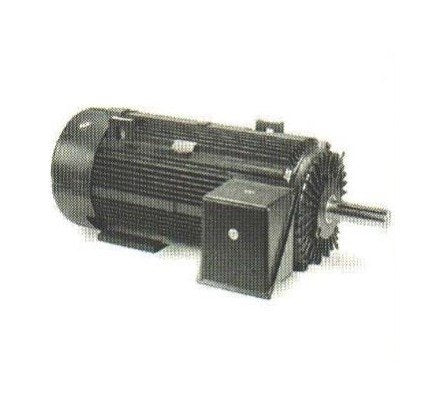

Marathon Electric Medium Voltage 5000 Frame Motor
Marathon Electric Medium Voltage 5000 Frame Motor
SKU:ELE-6155cc
Rugged and efficient Marathon Electric Medium Voltage Motor for industrial applications. Built for reliability in extreme conditions.
Regular price
$4,599.99
Regular price
Sale price
$4,599.99
Unit price
per
Initiate Order
Marathon Electric Medium Voltage 5000 Frame Motor
$4,599.99
Quantity: 1
Claim Your Seller Account
Marathon Electric Medium Voltage 5000 Frame Motor
$4,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric 5000 Frame Medium Voltage Motor is expertly designed for extreme industrial applications, offering exceptional performance in demanding environments such as chemical plants, pulp and paper mills, refineries, and mines. With a rugged construction featuring Blue Chip XRI® Severe Duty technology, this motor ensures reliability and efficiency. Equipped with advanced features like Class H insulation, form wound coils, and internal epoxy finish, it meets the highest industry standards for durability and performance. Ideal for institutions requiring robust and dependable equipment.
Product Specifications
Applications 0
Chemical PlantsPulp and Paper MillsFood ProcessingFoundriesRefineriesMinesOthers Severe Duty Environments
Features 0
Blue Chip® quality, cast iron construction for rigidity and reduced vibration.Open Conrad radial ball bearings rated at 100,000 hour B-10 life on direct coupled-loads.Grease fittings with extended grease tubes.Oversized cast iron conduit box.Epoxy 100% solids. Vacuum Pressure Impregnation (VPI) resin.1.15 Service factor.Front and rear cast iron bearing caps.Provisions for jacking bolts in all four feet.Actual test and vibration data included with each motor.Class H insulation. Form wound coils.Internal and external epoxy finish.Rotating shaft seals, Inpro® Smart Rings on each end.Provisions for dowel pins in drive end feet.Ground provisions on foot and in the conduit box.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Category
Medium Voltage
Specifications Dim C
67.19
Specifications Frame
5011LS
Specifications Full Load Ampere Fla
47.0 amps | 81.0 amps
Specifications Horsepower
350
Specifications Manufacturer
Marathon Electric
Specifications Motor Type
5000 Frame, Medium Voltage, 2300/4000 Volt, Blue Chip XRI® Severe Duty
Specifications Multiplier Symbol
S6
Specifications Nominal Efficiency
95.8
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Service Factor
1.15
Specifications Stock Model
No
Specifications Style
Totally Enclosed, Rigid Base
Specifications Voltage
2300 volts | 4000 volts
