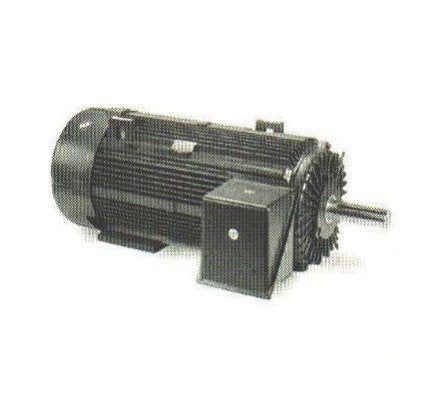

Marathon Electric Medium Voltage 5000 Frame Totally Enclosed Motors
Marathon Electric Medium Voltage 5000 Frame Totally Enclosed Motors
SKU:ELE-e74cbc
Marathon Electric Medium Voltage 5000 Frame Motors - Reliable and durable motors for extreme industrial applications.
Regular price
$5,499.99
Regular price
Sale price
$5,499.99
Unit price
per
Initiate Order
Marathon Electric Medium Voltage 5000 Frame Totally Enclosed Motors
$5,499.99
Quantity: 1
Claim Your Seller Account
Marathon Electric Medium Voltage 5000 Frame Totally Enclosed Motors
$5,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Medium Voltage 5000 Frame Motors are engineered for extreme applications in chemical plants, pulp and paper mills, food processing, and other severe duty environments. With a 2300/4000 Volt power supply, these Blue Chip XRI® Severe Duty motors boast a robust construction featuring cast iron, B-10 life rated radial ball bearings, 1.15 service factor, Class H insulation, and more. Each motor is meticulously tested and comes with vibration data, ensuring reliability and performance in demanding industrial settings.
Product Specifications
Applications 0
Chemical PlantsPulp and Paper MillsFood ProcessingFoundriesRefineriesMinesOthers Severe Duty Environments
Features 0
Blue Chip® quality, cast iron construction for rigidity and reduced vibration.Open Conrad radial ball bearings rated at 100,000 hour B-10 life on direct coupled-loads.Grease fittings with extended grease tubes.Oversized cast iron conduit box.Epoxy 100% solids. Vacuum Pressure Impregnation (VPI) resin.1.15 Service factor.Front and rear cast iron bearing caps.Provisions for jacking bolts in all four feet.Actual test and vibration data included with each motor.Class H insulation. Form wound coils.Internal and external epoxy finish.Rotating shaft seals, Inpro® Smart Rings on each end.Provisions for dowel pins in drive end feet.Ground provisions on foot and in the conduit box.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Category
Medium Voltage
Specifications Dim C
67.19
Specifications Frame
5011LS
Specifications Full Load Ampere Fla
53.0 amps | 92.0 amps
Specifications Horsepower
400
Specifications Manufacturer
Marathon Electric
Specifications Motor Type
5000 Frame, Medium Voltage, 2300/4000 Volt, Blue Chip XRI® Severe Duty
Specifications Multiplier Symbol
S6
Specifications Nominal Efficiency
95.8
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Service Factor
1.15
Specifications Stock Model
No
Specifications Style
Totally Enclosed, Rigid Base
Specifications Voltage
2300 volts | 4000 volts
