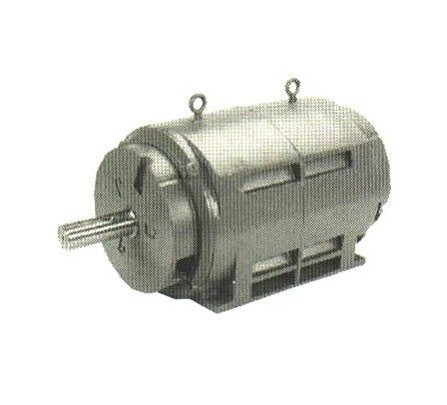

Marathon Electric Medium Voltage Dripproof Motors, 2300/4000V
Marathon Electric Medium Voltage Dripproof Motors, 2300/4000V
SKU:ELE-30dc8d
Highly efficient Marathon Electric Medium Voltage Dripproof Motors for pumps and fans, robust design, superior performance.
Regular price
$2,799.99
Regular price
Sale price
$2,799.99
Unit price
per
Initiate Order
Marathon Electric Medium Voltage Dripproof Motors, 2300/4000V
$2,799.99
Quantity: 1
Claim Your Seller Account
Marathon Electric Medium Voltage Dripproof Motors, 2300/4000V
$2,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Medium Voltage Dripproof Motors are designed for reliable performance in demanding applications, such as pumps and fans, where medium voltage power is required. Featuring a sturdy cast iron construction, these motors offer exceptional rigidity and reduced vibration. Equipped with double shielded radial ball bearings with a 100,000-hour B-10 life rating on direct coupled-loads, they ensure long-lasting durability. The motors are framed in 510U size with a 96.2% nominal efficiency, 1.15 service factor, and Class H insulation. With Epoxy VPI resin and ball bearings on both ends for direct connection, they are ideal for various industrial settings.
Product Specifications
Applications 0
PumpsFans
Features 0
Cast iron construction for rigidity and reduced vibration.Double shielded radial ball bearings rated at 100,000 hour B-10 life on direct coupled-loads.Oversized, fabricated steel conduit box.Ball bearings on both ends suitable for direct connection. For belted applications, contact customer service.Class H insulation and form wound coils.Epoxy, 100% solids, Vacuum Pressure Impregnation (VPI) resin.1.15 Service factor (except where noted).
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Category
Medium Voltage
Specifications Frame
510U
Specifications Full Load Ampere Fla
101 amps | 58.0 amps
Specifications Horsepower
450
Specifications Manufacturer
Marathon Electric
Specifications Motor Type
Medium Voltage, 2300/4000 Volt
Specifications Multiplier Symbol
S6
Specifications Nominal Efficiency
96.2
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Service Factor
1.15
Specifications Style
Dripproof, Rigid Base
Specifications Voltage
2300 volts | 4000 volts
