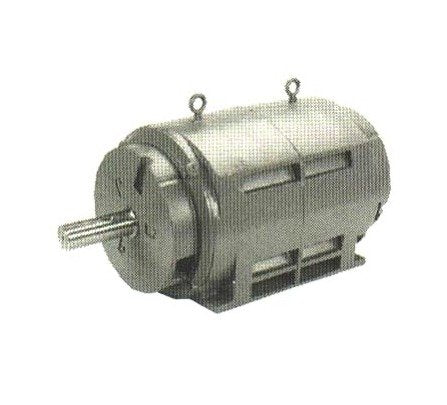

Marathon Electric Medium Voltage Dripproof Motors, 2300/4000V
Marathon Electric Medium Voltage Dripproof Motors, 2300/4000V
SKU:ELE-c7c5ed
Boost efficiency with Marathon Electric Medium Voltage Dripproof Motors for pumps & fans. TAA compliant & NIST standards.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Marathon Electric Medium Voltage Dripproof Motors, 2300/4000V
$799.99
Quantity: 1
Claim Your Seller Account
Marathon Electric Medium Voltage Dripproof Motors, 2300/4000V
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Medium Voltage Dripproof Motors, designed for pumps and fans, offer exceptional performance with a 95.0% nominal efficiency, 1.15 service factor, and Class H insulation. Featuring durable cast iron construction, double shielded radial ball bearings, and an oversized conduit box, these motors ensure reliability and longevity. With TAA compliance considerations and adherence to NIST standards, these motors are ideal for institutional buyers seeking top-quality medium voltage solutions.
Product Specifications
Applications 0
PumpsFans
Features 0
Cast iron construction for rigidity and reduced vibration.Double shielded radial ball bearings rated at 100,000 hour B-10 life on direct coupled-loads.Oversized, fabricated steel conduit box.Ball bearings on both ends suitable for direct connection. For belted applications, contact customer service.Class H insulation and form wound coils.Epoxy, 100% solids, Vacuum Pressure Impregnation (VPI) resin.1.15 Service factor (except where noted).
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Category
Medium Voltage
Specifications Frame
510U
Specifications Full Load Ampere Fla
54.0 amps | 94.0 amps
Specifications Horsepower
400
Specifications Manufacturer
Marathon Electric
Specifications Motor Type
Medium Voltage, 2300/4000 Volt
Specifications Multiplier Symbol
S6
Specifications Nominal Efficiency
95.0
Specifications Phase
3
Specifications Rpm
1200 rpm
Specifications Service Factor
1.15
Specifications Style
Dripproof, Rigid Base
Specifications Voltage
2300 volts | 4000 volts
