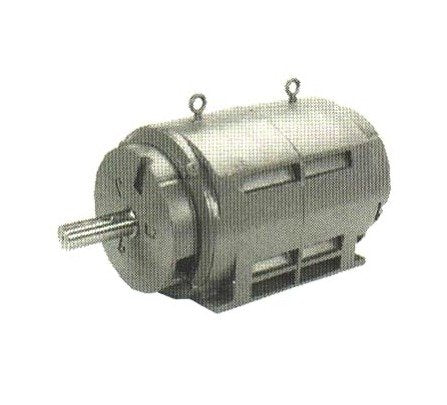

Marathon Electric Medium Voltage Dripproof Motors, 2300/4000V, 300 HP
Marathon Electric Medium Voltage Dripproof Motors, 2300/4000V, 300 HP
SKU:ELE-d9b785
Powerful and efficient Marathon Electric Medium Voltage Dripproof Motors for pumps and fans.
Regular price
$5,500.00
Regular price
Sale price
$5,500.00
Unit price
per
Initiate Order
Marathon Electric Medium Voltage Dripproof Motors, 2300/4000V, 300 HP
$5,500.00
Quantity: 1
Claim Your Seller Account
Marathon Electric Medium Voltage Dripproof Motors, 2300/4000V, 300 HP
$5,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Medium Voltage Dripproof Motors are designed for general purpose use on pumps and fans, leveraging reliable medium voltage power sources. With a robust construction of cast iron for rigidity and reduced vibration, these motors feature double shielded radial ball bearings with a 100,000-hour B-10 life rating. Equipped with Class H insulation, form-wound coils, and epoxy VPI resin, these motors ensure optimal performance and durability. Meeting a 94.5% nominal efficiency and boasting a 1.15 service factor, they provide reliable power in demanding applications.
Product Specifications
Applications 0
PumpsFans
Features 0
Cast iron construction for rigidity and reduced vibration.Double shielded radial ball bearings rated at 100,000 hour B-10 life on direct coupled-loads.Oversized, fabricated steel conduit box.Ball bearings on both ends suitable for direct connection. For belted applications, contact customer service.Class H insulation and form wound coils.Epoxy, 100% solids, Vacuum Pressure Impregnation (VPI) resin.1.15 Service factor (except where noted).
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Category
Medium Voltage
Specifications Frame
510U
Specifications Full Load Ampere Fla
45.0 amps | 78.0 amps
Specifications Horsepower
300
Specifications Manufacturer
Marathon Electric
Specifications Motor Type
Medium Voltage, 2300/4000 Volt
Specifications Multiplier Symbol
S6
Specifications Nominal Efficiency
94.5
Specifications Phase
3
Specifications Rpm
900 rpm
Specifications Service Factor
1.15
Specifications Style
Dripproof, Rigid Base
Specifications Voltage
2300 volts | 4000 volts
