Marathon Electric Medium Voltage Dripproof Motors - 2300/4000V

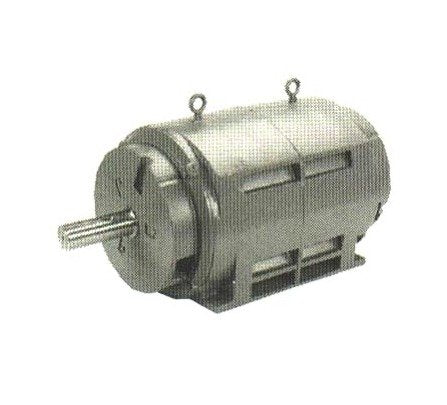

Marathon Electric Medium Voltage Dripproof Motors - 2300/4000V
SKU:ELE-526f69
Power your pumps and fans with Marathon Electric's Medium Voltage Dripproof Motors - 2300/4000V. Reliable, efficient, and built to last.
Regular price
$2,750.00
Regular price
Sale price
$2,750.00
Unit price
per
Initiate Order
Marathon Electric Medium Voltage Dripproof Motors - 2300/4000V
$2,750.00
Quantity: 1
Claim Your Seller Account
Marathon Electric Medium Voltage Dripproof Motors - 2300/4000V
$2,750.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Medium Voltage Dripproof Motors offer exceptional performance for pumps, fans, and other industrial applications where medium voltage power is required. With a voltage range of 2300 to 4000 volts, these motors feature cast iron construction, double shielded radial ball bearings, and Class H insulation for reliability and durability. The 200 horsepower motor is designed with industry-leading technology, including epoxy VPI resin for enhanced protection and efficiency.
Product Specifications
Applications 0
PumpsFans
Features 0
Cast iron construction for rigidity and reduced vibration.Double shielded radial ball bearings rated at 100,000 hour B-10 life on direct coupled-loads.Oversized, fabricated steel conduit box.Ball bearings on both ends suitable for direct connection. For belted applications, contact customer service.Class H insulation and form wound coils.Epoxy, 100% solids, Vacuum Pressure Impregnation (VPI) resin.1.15 Service factor (except where noted).
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Category
Medium Voltage
Specifications Frame
449T
Specifications Full Load Ampere Fla
28.0 amps | 48.0 amps
Specifications Horsepower
200
Specifications Manufacturer
Marathon Electric
Specifications Motor Type
Medium Voltage, 2300/4000 Volt
Specifications Multiplier Symbol
S6
Specifications Nominal Efficiency
94.1
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Service Factor
1.15
Specifications Style
Dripproof, Rigid Base
Specifications Voltage
2300 volts | 4000 volts
