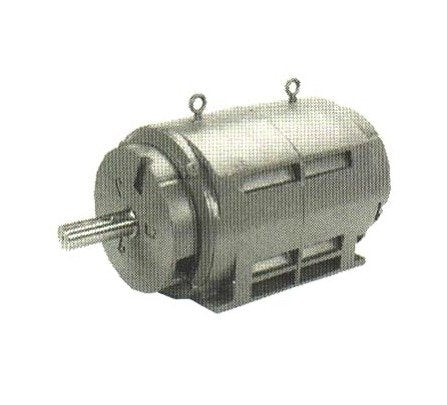

Marathon Electric Medium Voltage Dripproof Motors, 2300/4000V
Marathon Electric Medium Voltage Dripproof Motors, 2300/4000V
SKU:ELE-7d82a4
Marathon Electric Medium Voltage Dripproof Motors for reliable performance on pumps and fans. Robust construction, high efficiency, and durable design.
Regular price
$4,500.00
Regular price
Sale price
$4,500.00
Unit price
per
Initiate Order
Marathon Electric Medium Voltage Dripproof Motors, 2300/4000V
$4,500.00
Quantity: 1
Claim Your Seller Account
Marathon Electric Medium Voltage Dripproof Motors, 2300/4000V
$4,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Medium Voltage Dripproof Motors are designed for superior performance on pumps and fans where medium voltage power is available. With a robust construction featuring cast iron for rigidity and reduced vibration, double shielded radial ball bearings for longevity, and Class H insulation with form-wound coils, these motors ensure reliable operation. The motors also boast an oversized steel conduit box, ball bearings on both ends for direct connection, and epoxy resin insulation for durability. Rated with a 96.5% nominal efficiency and a 1.15 service factor, these motors are ideal for various industrial applications.
Product Specifications
Applications 0
PumpsFans
Features 0
Cast iron construction for rigidity and reduced vibration.Double shielded radial ball bearings rated at 100,000 hour B-10 life on direct coupled-loads.Oversized, fabricated steel conduit box.Ball bearings on both ends suitable for direct connection. For belted applications, contact customer service.Class H insulation and form wound coils.Epoxy, 100% solids, Vacuum Pressure Impregnation (VPI) resin.1.15 Service factor (except where noted).
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Category
Medium Voltage
Specifications Frame
510U
Specifications Full Load Ampere Fla
157 amps | 90.5 amps
Specifications Horsepower
700
Specifications Manufacturer
Marathon Electric
Specifications Motor Type
Medium Voltage, 2300/4000 Volt
Specifications Multiplier Symbol
S6
Specifications Nominal Efficiency
96.5
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Service Factor
1.00
Specifications Style
Dripproof, Rigid Base
Specifications Voltage
2300 volts | 4000 volts
