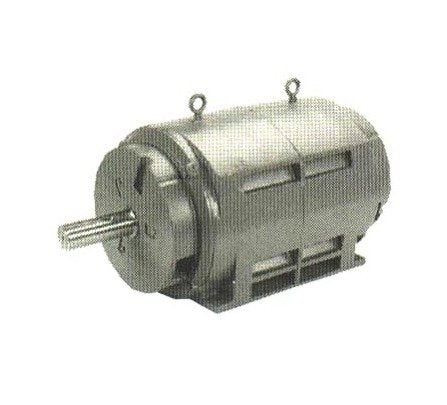

Marathon Electric Medium Voltage Dripproof Motors, 2300/4000V
Marathon Electric Medium Voltage Dripproof Motors, 2300/4000V
SKU:ELE-f02f71
High-efficiency Marathon Electric Medium Voltage Dripproof Motors, ideal for pumps, fans, and more. Reliable performance guaranteed.
Regular price
$1,800.00
Regular price
Sale price
$1,800.00
Unit price
per
Initiate Order
Marathon Electric Medium Voltage Dripproof Motors, 2300/4000V
$1,800.00
Quantity: 1
Claim Your Seller Account
Marathon Electric Medium Voltage Dripproof Motors, 2300/4000V
$1,800.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Medium Voltage Dripproof Motors are designed for general-purpose use on pumps, fans, and more in environments where medium voltage power is available. Featuring a Category: Medium Voltage, Manufacturer: Marathon Electric, Motor Type: Medium Voltage 2300/4000 Volt, Style: Dripproof, Rigid Base, these motors deliver reliable performance. With a 94.1% Nominal Efficiency, 1.15 Service Factor, and Class H insulation with form wound coils, they ensure durability and efficiency. The cast iron construction reduces vibration, along with double shielded radial ball bearings rated for 100,000-hour B-10 life, ensuring longevity and performance.
Product Specifications
Applications 0
PumpsFans
Features 0
Cast iron construction for rigidity and reduced vibration.Double shielded radial ball bearings rated at 100,000 hour B-10 life on direct coupled-loads.Oversized, fabricated steel conduit box.Ball bearings on both ends suitable for direct connection. For belted applications, contact customer service.Class H insulation and form wound coils.Epoxy, 100% solids, Vacuum Pressure Impregnation (VPI) resin.1.15 Service factor (except where noted).
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Category
Medium Voltage
Specifications Frame
508U
Specifications Full Load Ampere Fla
24.0 amps | 41.5 amps
Specifications Horsepower
150
Specifications Manufacturer
Marathon Electric
Specifications Motor Type
Medium Voltage, 2300/4000 Volt
Specifications Multiplier Symbol
S6
Specifications Nominal Efficiency
94.1
Specifications Phase
3
Specifications Rpm
900 rpm
Specifications Service Factor
1.15
Specifications Style
Dripproof, Rigid Base
Specifications Voltage
2300 volts | 4000 volts
