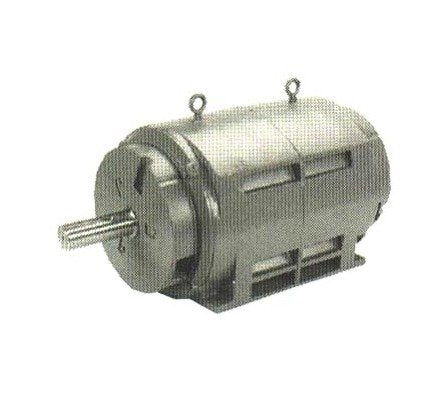

Marathon Electric Medium Voltage Dripproof Motors - 2300/4000V, Rigid Base

Name: Marathon Electric Medium Voltage Dripproof Motors - 2300/4000V, Rigid Base
Brand: Gainesville Industrial Electric Co.
SKU: ELE-2f21d6
Price: 2899.99 USD
Availability: OutOfStock

SKU:ELE-2f21d6

High-performance Medium Voltage Dripproof Motors for pumps and fans. Built for durability and efficiency.

$2,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience high performance and reliability with Marathon Electric Medium Voltage Dripproof Motors. Specifically designed for pumps and fans where medium voltage power is available, these motors boast a durable cast iron construction, double shielded radial ball bearings, and Class H insulation for enhanced efficiency and longevity. With a 1.15 service factor and form wound coils, these motors deliver consistent power and stability, meeting the needs of various industrial applications.

Product Specifications

Applications 0

PumpsFans

Features 0

Cast iron construction for rigidity and reduced vibration.Double shielded radial ball bearings rated at 100,000 hour B-10 life on direct coupled-loads.Oversized, fabricated steel conduit box.Ball bearings on both ends suitable for direct connection. For belted applications, contact customer service.Class H insulation and form wound coils.Epoxy, 100% solids, Vacuum Pressure Impregnation (VPI) resin.1.15 Service factor (except where noted).

Note 0

Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.

Specifications Category

Medium Voltage

Specifications Frame

508U

Specifications Full Load Ampere Fla

36.5 amps | 63.0 amps

Specifications Horsepower

250

Specifications Manufacturer

Marathon Electric

Specifications Motor Type

Medium Voltage, 2300/4000 Volt

Specifications Multiplier Symbol

Specifications Nominal Efficiency

94.5

Specifications Phase

Specifications Rpm

1200 rpm

Specifications Service Factor

1.15

Specifications Style

Dripproof, Rigid Base

Specifications Voltage

2300 volts | 4000 volts
