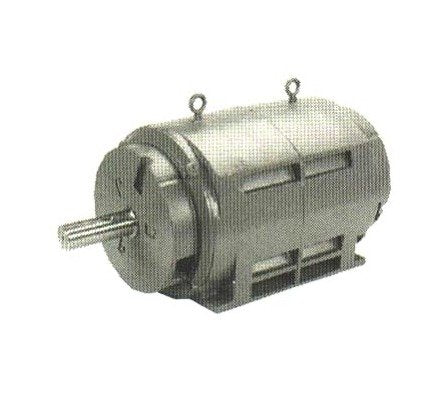

Marathon Electric Medium Voltage Dripproof Motors - 2300/4000V, Rigid Base
Marathon Electric Medium Voltage Dripproof Motors - 2300/4000V, Rigid Base
SKU:ELE-8556e0
High-performance Marathon Electric Medium Voltage Motors - Ideal for pumps, fans & industrial use. Voltage: 2300/4000V, Horsepower: 450, Efficiency: 95.4%
Regular price
$3,500.00
Regular price
Sale price
$3,500.00
Unit price
per
Initiate Order
Marathon Electric Medium Voltage Dripproof Motors - 2300/4000V, Rigid Base
$3,500.00
Quantity: 1
Claim Your Seller Account
Marathon Electric Medium Voltage Dripproof Motors - 2300/4000V, Rigid Base
$3,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Medium Voltage Dripproof Motors are designed for optimum performance on pumps, fans, and various industrial applications where medium voltage power is essential. With a voltage range of 2300 to 4000 volts and a horsepower of 450, these motors boast a Nominal Efficiency of 95.4, ensuring energy savings and reliable operation. Constructed with cast iron for rigidity, featuring double shielded radial ball bearings, Class H insulation, and epoxy resin, these motors offer durability and longevity under demanding conditions.
Product Specifications
Applications 0
PumpsFans
Features 0
Cast iron construction for rigidity and reduced vibration.Double shielded radial ball bearings rated at 100,000 hour B-10 life on direct coupled-loads.Oversized, fabricated steel conduit box.Ball bearings on both ends suitable for direct connection. For belted applications, contact customer service.Class H insulation and form wound coils.Epoxy, 100% solids, Vacuum Pressure Impregnation (VPI) resin.1.15 Service factor (except where noted).
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Category
Medium Voltage
Specifications Frame
510U
Specifications Full Load Ampere Fla
106 amps | 61.0 amps
Specifications Horsepower
450
Specifications Manufacturer
Marathon Electric
Specifications Motor Type
Medium Voltage, 2300/4000 Volt
Specifications Multiplier Symbol
S6
Specifications Nominal Efficiency
95.4
Specifications Phase
3
Specifications Rpm
1200 rpm
Specifications Service Factor
1.15
Specifications Style
Dripproof, Rigid Base
Specifications Voltage
2300 volts | 4000 volts
