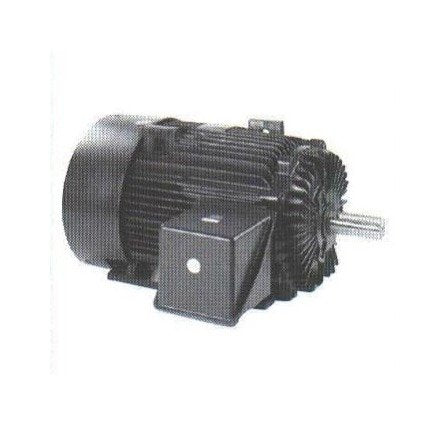

Marathon Electric Medium Voltage Motor - 2300/4000V, Totally Enclosed
Marathon Electric Medium Voltage Motor - 2300/4000V, Totally Enclosed
SKU:ELE-892f12
Get reliable and efficient power with the Marathon Electric Medium Voltage Motor. Ideal for extreme industrial applications.
Regular price
$3,499.00
Regular price
Sale price
$3,499.00
Unit price
per
Initiate Order
Marathon Electric Medium Voltage Motor - 2300/4000V, Totally Enclosed
$3,499.00
Quantity: 1
Claim Your Seller Account
Marathon Electric Medium Voltage Motor - 2300/4000V, Totally Enclosed
$3,499.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Medium Voltage Motor is designed for extreme industrial applications in chemical plants, pulp and paper mills, food processing, and foundries. With a motor type of Blue Chip XRI® Severe Duty and a voltage range of 2300/4000 volts, this motor offers exceptional performance and reliability. Featuring Blue Chip® quality, cast iron construction, Class H insulation, and internal/external epoxy finish, it ensures durability and efficiency in harsh environments. With a nominal efficiency of 94.5 and a service factor of 1.15, this motor delivers consistent power and reliability for critical operations.
Product Specifications
Applications 0
Chemical PlantsPulp and Paper MillsFood ProcessingFoundriesOthers Severe Duty Environments
Features 0
Blue Chip® quality, cast iron construction for rigidity and reduced vibration.Double shielded radial ball bearings rated at 100,000 hour B-10 life on direct coupled-loads.Grease fittings with extended grease tubes.Epoxy, 100% solids, Vacuum Pressure Impregnation (VPI) resin.1.15 Service factor.Internal and external epoxy finish.Ball bearings on both ends suitable for direct connection. For belted applications, contact customer service.Actual test and vibration data included with each motor.Class H insulation and form wound coils.Front and rear cast iron bearing caps.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Category
Medium Voltage
Specifications Dim C
51.69
Specifications Frame
447 | 9T
Specifications Full Load Ampere Fla
18.0 amps | 32.0 amps
Specifications Horsepower
125
Specifications Manufacturer
Marathon Electric
Specifications Motor Type
Medium Voltage, 2300/4000 Volt, Blue Chip XRI® Severe Duty
Specifications Multiplier Symbol
S6
Specifications Nominal Efficiency
94.5
Specifications Phase
3
Specifications Rpm
1200 rpm
Specifications Service Factor
1.15
Specifications Style
Totally Enclosed, Rigid Base
Specifications Voltage
2300 volts | 4000 volts
