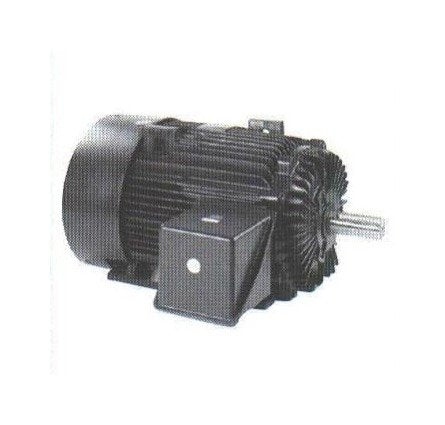

Marathon Electric Medium Voltage Motors - 2300/4000V
Marathon Electric Medium Voltage Motors - 2300/4000V
SKU:ELE-4f051f
High-performance Marathon Electric Medium Voltage Motors - Designed for extreme industrial applications. Blue Chip® quality and exceptional reliability.
Regular price
$2,650.00
Regular price
Sale price
$2,650.00
Unit price
per
Initiate Order
Marathon Electric Medium Voltage Motors - 2300/4000V
$2,650.00
Quantity: 1
Claim Your Seller Account
Marathon Electric Medium Voltage Motors - 2300/4000V
$2,650.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Medium Voltage Motors are designed for extreme applications in chemical plants, pulp and paper mills, food processing, foundries, and other severe duty environments. With a motor type of 2300/4000 Volt, Blue Chip XRI® Severe Duty, these motors offer superior reliability, efficiency, and durability. Features include Blue Chip® quality, cast iron construction, double shielded radial ball bearings, 1.15 service factor, and Class H insulation. Ideal for demanding industrial settings, these motors ensure optimal performance and longevity.
Product Specifications
Applications 0
Chemical PlantsPulp and Paper MillsFood ProcessingFoundriesOthers Severe Duty Environments
Features 0
Blue Chip® quality, cast iron construction for rigidity and reduced vibration.Double shielded radial ball bearings rated at 100,000 hour B-10 life on direct coupled-loads.Grease fittings with extended grease tubes.Epoxy, 100% solids, Vacuum Pressure Impregnation (VPI) resin.1.15 Service factor.Internal and external epoxy finish.Ball bearings on both ends suitable for direct connection. For belted applications, contact customer service.Actual test and vibration data included with each motor.Class H insulation and form wound coils.Front and rear cast iron bearing caps.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Category
Medium Voltage
Specifications Dim C
56.71
Specifications Frame
449T
Specifications Full Load Ampere Fla
32.0 amps | 56.0 amps
Specifications Horsepower
250
Specifications Manufacturer
Marathon Electric
Specifications Model Number
449TVFS6542
Specifications Motor Type
Medium Voltage, 2300/4000 Volt, Blue Chip XRI® Severe Duty
Specifications Multiplier Symbol
S6
Specifications Nominal Efficiency
95.4
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Service Factor
1.15
Specifications Style
Totally Enclosed, Rigid Base
Specifications Voltage
2300 volts | 4000 volts
