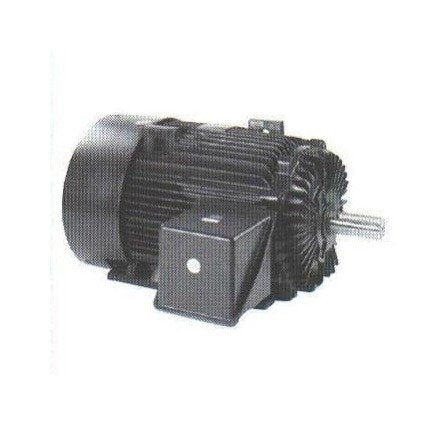

Marathon Electric Medium Voltage Motors, 2300/4000V, Severe Duty Rigid Base
Marathon Electric Medium Voltage Motors, 2300/4000V, Severe Duty Rigid Base
SKU:ELE-77ff34
Experience superior performance in extreme industrial environments with Marathon Electric Medium Voltage Motors. Rugged, efficient, reliable.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Marathon Electric Medium Voltage Motors, 2300/4000V, Severe Duty Rigid Base
$2,899.99
Quantity: 1
Claim Your Seller Account
Marathon Electric Medium Voltage Motors, 2300/4000V, Severe Duty Rigid Base
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Medium Voltage Motors deliver unparalleled performance in extreme industrial environments where medium voltage power is crucial. With a horsepower of 100 and a 93.0% nominal efficiency, these Blue Chip XRI® Severe Duty motors ensure reliable operation in chemical plants, pulp and paper mills, food processing facilities, foundries, and other severe duty applications. Featuring a rugged cast iron construction, double shielded radial ball bearings, 1.15 service factor, and Class H insulation, these motors are built for durability, efficiency, and reduced vibration.
Product Specifications
Applications 0
Chemical PlantsPulp and Paper MillsFood ProcessingFoundriesOthers Severe Duty Environments
Features 0
Blue Chip® quality, cast iron construction for rigidity and reduced vibration.Double shielded radial ball bearings rated at 100,000 hour B-10 life on direct coupled-loads.Grease fittings with extended grease tubes.Epoxy, 100% solids, Vacuum Pressure Impregnation (VPI) resin.1.15 Service factor.Internal and external epoxy finish.Ball bearings on both ends suitable for direct connection. For belted applications, contact customer service.Actual test and vibration data included with each motor.Class H insulation and form wound coils.Front and rear cast iron bearing caps.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Category
Medium Voltage
Specifications Dim C
51.69
Specifications Frame
447 | 9T
Specifications Full Load Ampere Fla
16.0 amps | 27.0 amps
Specifications Horsepower
100
Specifications Manufacturer
Marathon Electric
Specifications Motor Type
Medium Voltage, 2300/4000 Volt, Blue Chip XRI® Severe Duty
Specifications Multiplier Symbol
S6
Specifications Nominal Efficiency
93.0
Specifications Phase
3
Specifications Rpm
900 rpm
Specifications Service Factor
1.15
Specifications Style
Totally Enclosed, Rigid Base
Specifications Voltage
2300 volts | 4000 volts
