Marathon Electric Medium Voltage Motors, 2300/4000V, Totally Enclosed
Marathon Electric Medium Voltage Motors, 2300/4000V, Totally Enclosed
SKU:ELE-eeaa26
Highly efficient Marathon Electric Medium Voltage Motors for extreme industrial applications. Blue Chip quality, robust construction, and superior performance.
Regular price
$4,500.00
Regular price
Sale price
$4,500.00
Unit price
per
Initiate Order
Marathon Electric Medium Voltage Motors, 2300/4000V, Totally Enclosed
$4,500.00
Quantity: 1
Claim Your Seller Account
Marathon Electric Medium Voltage Motors, 2300/4000V, Totally Enclosed
$4,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

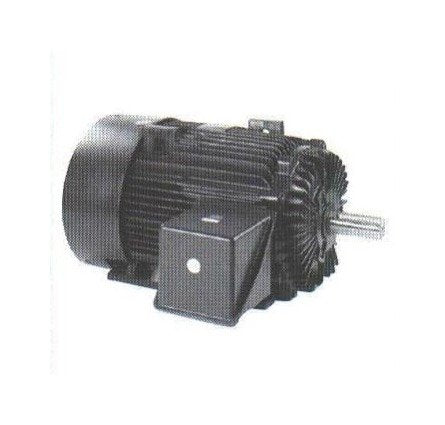

The Marathon Electric Medium Voltage Motors are designed for extreme applications, ideal for chemical plants, pulp and paper mills, food processing, foundries, and other severe duty environments. With Blue Chip quality, these motors feature a cast iron construction for rigidity and reduced vibration, 100% solids epoxy resin for durability, and Class H insulation with form wound coils. They offer 94.5% nominal efficiency, a 1.15 service factor, and come with a full set of features including double shielded radial ball bearings, grease fittings, internal and external epoxy finish, and more. Each motor includes actual test and vibration data, ensuring performance and reliability.
Product Specifications
Applications 0
Chemical PlantsPulp and Paper MillsFood ProcessingFoundriesOthers Severe Duty Environments
Features 0
Blue Chip® quality, cast iron construction for rigidity and reduced vibration.Double shielded radial ball bearings rated at 100,000 hour B-10 life on direct coupled-loads.Grease fittings with extended grease tubes.Epoxy, 100% solids, Vacuum Pressure Impregnation (VPI) resin.1.15 Service factor.Internal and external epoxy finish.Ball bearings on both ends suitable for direct connection. For belted applications, contact customer service.Actual test and vibration data included with each motor.Class H insulation and form wound coils.Front and rear cast iron bearing caps.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Category
Medium Voltage
Specifications Dim C
51.69
Specifications Frame
447 | 9T
Specifications Full Load Ampere Fla
22.0 amps | 38.0 amps
Specifications Horsepower
150
Specifications Manufacturer
Marathon Electric
Specifications Motor Type
Medium Voltage, 2300/4000 Volt, Blue Chip XRI® Severe Duty
Specifications Multiplier Symbol
S6
Specifications Nominal Efficiency
94.5
Specifications Phase
3
Specifications Rpm
1200 rpm
Specifications Service Factor
1.15
Specifications Style
Totally Enclosed, Rigid Base
Specifications Voltage
2300 volts | 4000 volts
