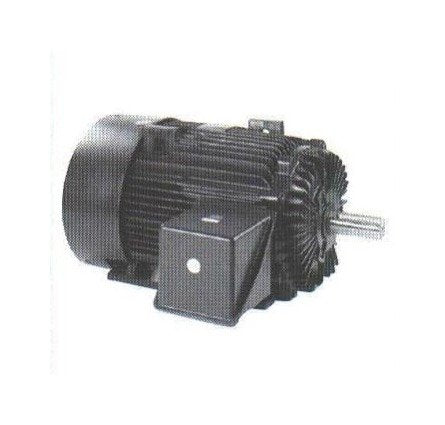

Marathon Electric Medium Voltage Severe Duty Motors
Marathon Electric Medium Voltage Severe Duty Motors
SKU:ELE-409f10
Reliable Marathon Electric Medium Voltage Motors for extreme industrial use. Blue Chip® quality, 94.1% efficiency, ideal for severe duty environments.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Marathon Electric Medium Voltage Severe Duty Motors
$2,899.99
Quantity: 1
Claim Your Seller Account
Marathon Electric Medium Voltage Severe Duty Motors
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Designed for extreme industrial applications, the Marathon Electric Medium Voltage Motors provide reliable performance in demanding environments like chemical plants, pulp and paper mills, and foundries. Featuring Blue Chip® quality and 100% solids epoxy resin construction, these motors offer superior rigidity, reduced vibration, and Class H insulation. With a 1.15 service factor and double shielded radial ball bearings, they ensure long-lasting efficiency and performance. Ideal for medium voltage power systems, these motors come in 2300/4000 volts and boast a 94.1% nominal efficiency, making them a top choice for severe duty applications.
Product Specifications
Applications 0
Chemical PlantsPulp and Paper MillsFood ProcessingFoundriesOthers Severe Duty Environments
Features 0
Blue Chip® quality, cast iron construction for rigidity and reduced vibration.Double shielded radial ball bearings rated at 100,000 hour B-10 life on direct coupled-loads.Grease fittings with extended grease tubes.Epoxy, 100% solids, Vacuum Pressure Impregnation (VPI) resin.1.15 Service factor.Internal and external epoxy finish.Ball bearings on both ends suitable for direct connection. For belted applications, contact customer service.Actual test and vibration data included with each motor.Class H insulation and form wound coils.Front and rear cast iron bearing caps.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Category
Medium Voltage
Specifications Dim C
51.69
Specifications Frame
447 | 9T
Specifications Full Load Ampere Fla
21.0 amps | 36.0 amps
Specifications Horsepower
150
Specifications Manufacturer
Marathon Electric
Specifications Motor Type
Medium Voltage, 2300/4000 Volt, Blue Chip XRI® Severe Duty
Specifications Multiplier Symbol
S6
Specifications Nominal Efficiency
94.1
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Service Factor
1.15
Specifications Style
Totally Enclosed, Rigid Base
Specifications Voltage
2300 volts | 4000 volts
