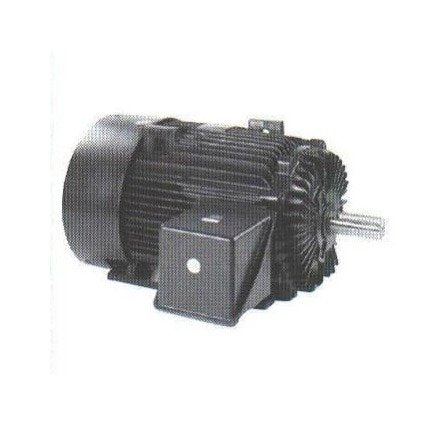

Marathon Electric Medium Voltage Severe Duty Motors, 2300/4000V
Marathon Electric Medium Voltage Severe Duty Motors, 2300/4000V
SKU:ELE-a20a00
Highly efficient and reliable Marathon Electric Medium Voltage Motors for extreme industrial applications. Blue Chip quality, cast iron construction, and enhanced durability.
Regular price
$1,500.00
Regular price
Sale price
$1,500.00
Unit price
per
Initiate Order
Marathon Electric Medium Voltage Severe Duty Motors, 2300/4000V
$1,500.00
Quantity: 1
Claim Your Seller Account
Marathon Electric Medium Voltage Severe Duty Motors, 2300/4000V
$1,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Medium Voltage Totally Enclosed Motors are designed for extreme industrial applications in chemical plants, pulp and paper mills, food processing, foundries, and other severe duty environments. With Blue Chip quality, these motors feature cast iron construction, double shielded radial ball bearings, epoxy VPI resin, 1.15 service factor, and Class H insulation. Ideal for medium voltage power applications, these motors ensure high efficiency and reliability in demanding conditions.
Product Specifications
Applications 0
Chemical PlantsPulp and Paper MillsFood ProcessingFoundriesOthers Severe Duty Environments
Features 0
Blue Chip® quality, cast iron construction for rigidity and reduced vibration.Double shielded radial ball bearings rated at 100,000 hour B-10 life on direct coupled-loads.Grease fittings with extended grease tubes.Epoxy, 100% solids, Vacuum Pressure Impregnation (VPI) resin.1.15 Service factor.Internal and external epoxy finish.Ball bearings on both ends suitable for direct connection. For belted applications, contact customer service.Actual test and vibration data included with each motor.Class H insulation and form wound coils.Front and rear cast iron bearing caps.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Category
Medium Voltage
Specifications Dim C
52.96
Specifications Frame
447 | 9TS
Specifications Full Load Ampere Fla
25.0 amps | 45.0 amps
Specifications Horsepower
200
Specifications Manufacturer
Marathon Electric
Specifications Model Number
449TSVFS6504
Specifications Motor Type
Medium Voltage, 2300/4000 Volt, Blue Chip XRI® Severe Duty
Specifications Multiplier Symbol
S6
Specifications Nominal Efficiency
93.0
Specifications Phase
3
Specifications Rpm
3600 rpm
Specifications Service Factor
1.15
Specifications Style
Totally Enclosed, Rigid Base
Specifications Voltage
2300 volts | 4160 volts
