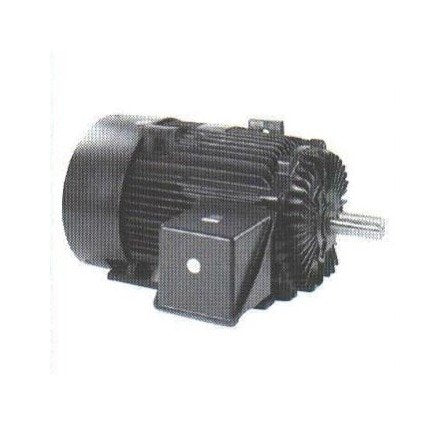

Marathon Electric Medium Voltage Totally Enclosed Motors
Marathon Electric Medium Voltage Totally Enclosed Motors
SKU:ELE-47c18d
High-performance Marathon Electric Medium Voltage Totally Enclosed Motors for extreme industrial applications. Voltage: 2300/4000V
Regular price
$3,500.00
Regular price
Sale price
$3,500.00
Unit price
per
Initiate Order
Marathon Electric Medium Voltage Totally Enclosed Motors
$3,500.00
Quantity: 1
Claim Your Seller Account
Marathon Electric Medium Voltage Totally Enclosed Motors
$3,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Medium Voltage Totally Enclosed Motors are designed for extreme industrial applications in chemical plants, pulp and paper mills, food processing, foundries, and other severe duty environments. These motors, with voltages of 2300/4000V, uphold Blue Chip XRI® Severe Duty craftsmanship for optimal performance and efficiency even in the harshest conditions. Featuring a robust construction with Class H insulation, form-wound coils, and a 1.15 service factor, these motors ensure reliable operation and longevity.
Product Specifications
Applications 0
Chemical PlantsPulp and Paper MillsFood ProcessingFoundriesOthers Severe Duty Environments
Features 0
Blue Chip® quality, cast iron construction for rigidity and reduced vibration.Double shielded radial ball bearings rated at 100,000 hour B-10 life on direct coupled-loads.Grease fittings with extended grease tubes.Epoxy, 100% solids, Vacuum Pressure Impregnation (VPI) resin.1.15 Service factor.Internal and external epoxy finish.Ball bearings on both ends suitable for direct connection. For belted applications, contact customer service.Actual test and vibration data included with each motor.Class H insulation and form wound coils.Front and rear cast iron bearing caps.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Category
Medium Voltage
Specifications Dim C
56.71
Specifications Frame
447 | 9T
Specifications Full Load Ampere Fla
35.0 amps | 61.0 amps
Specifications Horsepower
250
Specifications Manufacturer
Marathon Electric
Specifications Motor Type
Medium Voltage, 2300/4000 Volt, Blue Chip XRI® Severe Duty
Specifications Multiplier Symbol
S6
Specifications Nominal Efficiency
95.4
Specifications Phase
3
Specifications Rpm
1200 rpm
Specifications Service Factor
1.15
Specifications Style
Totally Enclosed, Rigid Base
Specifications Voltage
2300 volts | 4000 volts
