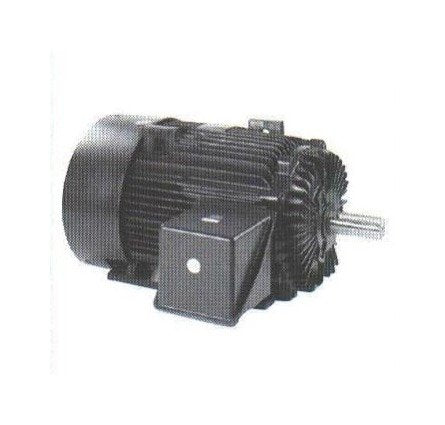

Marathon Electric Medium Voltage Totally Enclosed Motors
Marathon Electric Medium Voltage Totally Enclosed Motors
SKU:ELE-7716e3
Reliable Marathon Electric Medium Voltage Motors for extreme industrial applications. Ideal for chemical plants, pulp and paper mills, food processing, and foundries.
Regular price
$2,850.00
Regular price
Sale price
$2,850.00
Unit price
per
Initiate Order
Marathon Electric Medium Voltage Totally Enclosed Motors
$2,850.00
Quantity: 1
Claim Your Seller Account
Marathon Electric Medium Voltage Totally Enclosed Motors
$2,850.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Medium Voltage Motors are engineered for extreme industrial applications where medium voltage power is crucial. With a robust Blue Chip XRI® Severe Duty design, these motors offer uncompromising reliability and performance. Built with Blue Chip® quality cast iron construction, double shielded radial ball bearings, and Class H insulation, these motors ensure rigidity, reduced vibration, and long-lasting operation. The epoxy finish, 100% solid Vacuum Pressure Impregnation (VPI) resin, and 1.15 service factor make them ideal for chemical plants, pulp and paper mills, food processing facilities, foundries, and other severe duty environments. Each motor comes with actual test and vibration data, meeting stringent industry standards for quality assurance.
Product Specifications
Applications 0
Chemical PlantsPulp and Paper MillsFood ProcessingFoundriesOthers Severe Duty Environments
Features 0
Blue Chip® quality, cast iron construction for rigidity and reduced vibration.Double shielded radial ball bearings rated at 100,000 hour B-10 life on direct coupled-loads.Grease fittings with extended grease tubes.Epoxy, 100% solids, Vacuum Pressure Impregnation (VPI) resin.1.15 Service factor.Internal and external epoxy finish.Ball bearings on both ends suitable for direct connection. For belted applications, contact customer service.Actual test and vibration data included with each motor.Class H insulation and form wound coils.Front and rear cast iron bearing caps.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Category
Medium Voltage
Specifications Dim C
56.71
Specifications Frame
447 | 9T
Specifications Full Load Ampere Fla
28.5 amps | 49.5 amps
Specifications Horsepower
200
Specifications Manufacturer
Marathon Electric
Specifications Motor Type
Medium Voltage, 2300/4000 Volt, Blue Chip XRI® Severe Duty
Specifications Multiplier Symbol
S6
Specifications Nominal Efficiency
94.5
Specifications Phase
3
Specifications Rpm
1200 rpm
Specifications Service Factor
1.15
Specifications Style
Totally Enclosed, Rigid Base
Specifications Voltage
2300 volts | 4000 volts
