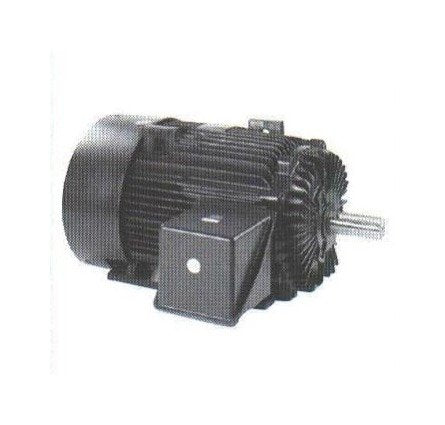

Marathon Electric Medium Voltage Totally Enclosed Motors
Marathon Electric Medium Voltage Totally Enclosed Motors
SKU:ELE-92bef6
Powerful and reliable medium voltage motors built for extreme industrial applications. Blue Chip® quality and unparalleled durability.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
Marathon Electric Medium Voltage Totally Enclosed Motors
$4,999.99
Quantity: 1
Claim Your Seller Account
Marathon Electric Medium Voltage Totally Enclosed Motors
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unmatched durability and performance with Marathon Electric Medium Voltage Totally Enclosed Motors. Designed for extreme applications in chemical plants, pulp and paper mills, and other severe duty environments. Features Blue Chip® quality, cast iron construction, double shielded radial ball bearings, Class H insulation, and more.
Product Specifications
Applications 0
Chemical PlantsPulp and Paper MillsFood ProcessingFoundriesOthers Severe Duty Environments
Features 0
Blue Chip® quality, cast iron construction for rigidity and reduced vibration.Double shielded radial ball bearings rated at 100,000 hour B-10 life on direct coupled-loads.Grease fittings with extended grease tubes.Epoxy, 100% solids, Vacuum Pressure Impregnation (VPI) resin.1.15 Service factor.Internal and external epoxy finish.Ball bearings on both ends suitable for direct connection. For belted applications, contact customer service.Actual test and vibration data included with each motor.Class H insulation and form wound coils.Front and rear cast iron bearing caps.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Category
Medium Voltage
Specifications Dim C
56.71
Specifications Frame
447 | 9T
Specifications Full Load Ampere Fla
17.0 amps | 30.0 amps
Specifications Horsepower
125
Specifications Manufacturer
Marathon Electric
Specifications Model Number
449TVFS16535
Specifications Motor Type
Medium Voltage, 2300/4000 Volt, Blue Chip XRI® Severe Duty
Specifications Multiplier Symbol
S6
Specifications Nominal Efficiency
94.1
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Service Factor
1.15
Specifications Style
Totally Enclosed, Rigid Base
Specifications Voltage
2300 volts | 4000 volts
