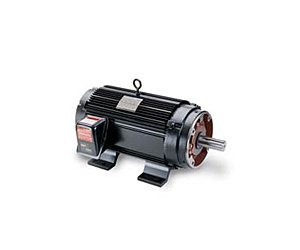

Marathon Electric Motors - Black Max Inverter Duty
Marathon Electric Motors - Black Max Inverter Duty
SKU:ELE-35038b
Marathon Black Max Inverter Duty Motor: 1000:1 Constant Torque & MAX GUARD Insulation. UL Recognized. CSA Certified.
Regular price
$749.99
Regular price
Sale price
$749.99
Unit price
per
Initiate Order
Marathon Electric Motors - Black Max Inverter Duty
$749.99
Quantity: 1
Claim Your Seller Account
Marathon Electric Motors - Black Max Inverter Duty
$749.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Motors Black Max Inverter Duty is designed for inverter or vector applications requiring up to a 1000:1 Constant Torque speed range. With a MAX GUARD Class F insulation system, this motor ensures continuous operation at 40°C ambient temperature and offers constant torque from 0 to base speed on Vector Drive. Trusted for material handling, machine tools, and more, this motor is UL Recognized and CSA Certified for reliability and performance excellence.
Product Specifications
Applications 0
Material HandlingMachine ToolsConveyorsCranesHoistsMetal ProcessingTest StandsPumpsCompressorsTextiles ProcessingOther Industrial Machinery
Features 0
MAX GUARD® Class F insulation system.Constant Torque operation from 0 to base speed on Vector Drive.Constant Horsepower to twice base RPM.Continuous duty at 40° C ambient.Optimized for operation with IGBT inverter (NEMA Design A).Normally closed thermostats (one per phase).Removable Rigid Base on some models, as noted.Ball bearing.Encoder and brake provisions included on opposite drive end (maximum 10 Ib-ft brake, see Modifications and/or accessory Kits sections).UL Recognized and CSA Certified.Three year warranty.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Approx Weight
43 lbs
Specifications Category
Inverter Duty
Specifications Dim C
15.04
Specifications Frame
143TC
Specifications Full Load Ampere Fla
1.5 amps | 3.0 amps
Specifications Horsepower
1
Specifications Manufacturer
Marathon Electric
Specifications Model Number
143THTR5326
Specifications Motor Type
Black Max® Vector Duty - 1000:1 Constant Torque
Specifications Multiplier Symbol
E3
Specifications Over Load
TSTAT
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Stock Model
Yes
Specifications Style
Totally Enclosed Non-Ventilated, C-Face with Rigid Base
Specifications Voltage
230 volts | 460 volts
