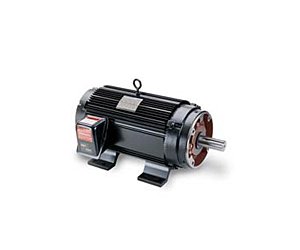

Marathon Electric Motors Black Max Inverter Duty 20 HP TENV C-Face Footed
Marathon Electric Motors Black Max Inverter Duty 20 HP TENV C-Face Footed
SKU:ELE-932283
Marathon Electric Motors Black Max Inverter Duty motor - Reliable, efficient, and durable motor for industrial inverter applications.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Marathon Electric Motors Black Max Inverter Duty 20 HP TENV C-Face Footed
$1,899.99
Quantity: 1
Claim Your Seller Account
Marathon Electric Motors Black Max Inverter Duty 20 HP TENV C-Face Footed
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Motors' Black Max Inverter Duty motor is designed for inverter applications requiring a 1000:1 Constant Torque speed range. With a Totally Enclosed Non-Ventilated design and a rugged C-Face Footed with Rigid Base construction, this motor is perfect for industrial applications in dusty environments. It features a MAX GUARD® Class F insulation system, operating at 0 to base speed on a Vector Drive with constant horsepower up to twice base RPM. UL Recognized, CSA Certified, and backed by a three-year warranty, this motor ensures reliable performance in material handling, machine tools, conveyors, and more.
Product Specifications
Applications 0
Material HandlingMachine ToolsConveyorsCranesHoistsMetal ProcessingTest StandsPumpsCompressorsTextiles ProcessingOther Industrial Machinery
Features 0
MAX GUARD® Class F insulation system.Constant Torque operation from 0 to base speed on Vector Drive.Constant Horsepower to twice base RPM.Continuous duty at 40° C ambient.Optimized for operation with IGBT inverter (NEMA Design A).Normally closed thermostats (one per phase).Removable Rigid Base on some models, as noted.Ball bearing.Encoder and brake provisions included on opposite drive end (maximum 10 Ib-ft brake, see Modifications and/or accessory Kits sections).UL Recognized and CSA Certified.Three year warranty.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Approx Weight
300 lbs
Specifications Category
Inverter Duty
Specifications Dim C
25.13
Specifications Frame
256TC
Specifications Full Load Ampere Fla
26.0 amps | 52.0 amps
Specifications Horsepower
20
Specifications Manufacturer
Marathon Electric
Specifications Model Number
256THTNA7026
Specifications Motor Type
Black Max® Vector Duty - 1000:1 Constant Torque
Specifications Multiplier Symbol
E3
Specifications Over Load
TSTAT
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Stock Model
Yes
Specifications Style
Totally Enclosed Non-Ventilated, C-Face with Rigid Base
Specifications Voltage
230 volts | 460 volts
