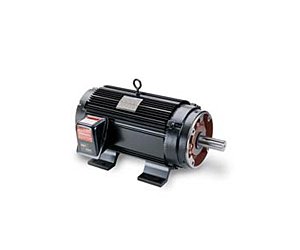

Marathon Electric Motors - Black Max Inverter Duty 5 HP 3-Phase 215TC Motor
Marathon Electric Motors - Black Max Inverter Duty 5 HP 3-Phase 215TC Motor
SKU:ELE-b4981f
Enhance productivity with the Marathon Black Max Inverter Duty Motor. Reliable, efficient, and optimized for industrial applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Marathon Electric Motors - Black Max Inverter Duty 5 HP 3-Phase 215TC Motor
$899.99
Quantity: 1
Claim Your Seller Account
Marathon Electric Motors - Black Max Inverter Duty 5 HP 3-Phase 215TC Motor
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Motors Black Max Inverter Duty Motor is designed for precision inverter applications requiring a 1000:1 Constant Torque speed range. With a MAX GUARD® Class F insulation system, this motor offers constant torque operation, continuous duty at 40°C ambient temperature, and is optimized for IGBT inverter operation. Equipped with essential features like normally closed thermostats, ball bearings, and UL Recognized and CSA Certified components, it ensures reliable performance in industrial settings. Perfect for material handling, machine tools, and more, this motor combines durability and efficiency.
Product Specifications
Applications 0
Material HandlingMachine ToolsConveyorsCranesHoistsMetal ProcessingTest StandsPumpsCompressorsTextiles ProcessingOther Industrial Machinery
Features 0
MAX GUARD® Class F insulation system.Constant Torque operation from 0 to base speed on Vector Drive.Constant Horsepower to twice base RPM.Continuous duty at 40° C ambient.Optimized for operation with IGBT inverter (NEMA Design A).Normally closed thermostats (one per phase).Removable Rigid Base on some models, as noted.Ball bearing.Encoder and brake provisions included on opposite drive end (maximum 10 Ib-ft brake, see Modifications and/or accessory Kits sections).UL Recognized and CSA Certified.Three year warranty.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Approx Weight
138 lbs
Specifications Category
Inverter Duty
Specifications Dim C
21.54
Specifications Frame
215TC
Specifications Full Load Ampere Fla
15.4 amps | 7.7 amps
Specifications Horsepower
5
Specifications Manufacturer
Marathon Electric
Specifications Model Number
215THTL7776
Specifications Motor Type
Black Max® Vector Duty - 1000:1 Constant Torque
Specifications Multiplier Symbol
E3
Specifications Over Load
TSTAT
Specifications Phase
3
Specifications Rpm
1200 rpm
Specifications Stock Model
Yes
Specifications Style
Totally Enclosed Non-Ventilated, C-Face with Rigid Base
Specifications Voltage
230 volts | 460 volts
