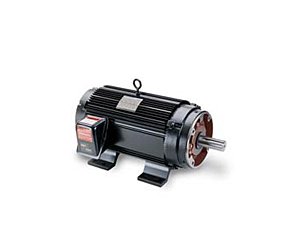

Marathon Electric Motors Black Max Inverter Duty Motor
Marathon Electric Motors Black Max Inverter Duty Motor
SKU:ELE-5d8f84
Efficient and durable Marathon Black Max Inverter Duty Motor for industrial applications. Exceptional performance and reliability.
Regular price
$1,579.99
Regular price
Sale price
$1,579.99
Unit price
per
Initiate Order
Marathon Electric Motors Black Max Inverter Duty Motor
$1,579.99
Quantity: 1
Claim Your Seller Account
Marathon Electric Motors Black Max Inverter Duty Motor
$1,579.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Motors Black Max Inverter Duty Motor is designed for precision inverter or vector applications requiring up to a 1000:1 Constant Torque speed range. With a rugged Totally Enclosed Non-Ventilated (TENV) design featuring a C-Face Footed frame with Rigid Base, this motor is ideal for industrial environments such as material handling, machine tools, conveyors, crane and hoist systems, metal processing, pumps, compressors, and textile machinery. It boasts a MAX GUARD® Class F insulation system, continuous duty operation at 40°C ambient, and is optimized for use with IGBT inverters. Backed by UL Recognition, CSA Certification, and a three-year warranty, this motor ensures reliability and longevity in demanding applications.
Product Specifications
Applications 0
Material HandlingMachine ToolsConveyorsCranesHoistsMetal ProcessingTest StandsPumpsCompressorsTextiles ProcessingOther Industrial Machinery
Features 0
MAX GUARD® Class F insulation system.Constant Torque operation from 0 to base speed on Vector Drive.Constant Horsepower to twice base RPM.Continuous duty at 40° C ambient.Optimized for operation with IGBT inverter (NEMA Design A).Normally closed thermostats (one per phase).Removable Rigid Base on some models, as noted.Ball bearing.Encoder and brake provisions included on opposite drive end (maximum 10 Ib-ft brake, see Modifications and/or accessory Kits sections).UL Recognized and CSA Certified.Three year warranty.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Approx Weight
209 lbs
Specifications Category
Inverter Duty
Specifications Dim C
25.37
Specifications Frame
254TC
Specifications Full Load Ampere Fla
11.0 amps | 22.0 amps
Specifications Horsepower
7 1/2
Specifications Manufacturer
Marathon Electric
Specifications Model Number
254THTL5776
Specifications Motor Type
Black Max® Vector Duty - 1000:1 Constant Torque
Specifications Multiplier Symbol
E3
Specifications Over Load
TSTAT
Specifications Phase
3
Specifications Rpm
1200 rpm
Specifications Stock Model
Yes
Specifications Style
Totally Enclosed Non-Ventilated, C-Face with Rigid Base
Specifications Voltage
230 volts | 460 volts
