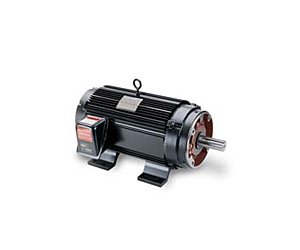

Marathon Electric Motors Black Max Inverter Duty TENV C-Face Footed
Marathon Electric Motors Black Max Inverter Duty TENV C-Face Footed
SKU:ELE-f53d7b
Powerful Marathon Electric Motors Black Max Inverter Duty TENV motor for versatile industrial applications.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Marathon Electric Motors Black Max Inverter Duty TENV C-Face Footed
$1,899.99
Quantity: 1
Claim Your Seller Account
Marathon Electric Motors Black Max Inverter Duty TENV C-Face Footed
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Motors Black Max Inverter Duty TENV motor is expertly designed for inverter or vector applications requiring a 1000:1 Constant Torque speed range. With applications across diverse industries like material handling, machine tools, and metal processing, this motor excels in dusty or dirty environments. It boasts features like MAX GUARD Class F insulation, constant torque operation, continuous duty at 40°C ambient temperature, and compatibility with IGBT inverters. This motor is UL Recognized, CSA Certified, and comes with a three-year warranty.
Product Specifications
Applications 0
Material HandlingMachine ToolsConveyorsCranesHoistsMetal ProcessingTest StandsPumpsCompressorsTextiles ProcessingOther Industrial Machinery
Features 0
MAX GUARD® Class F insulation system.Constant Torque operation from 0 to base speed on Vector Drive.Constant Horsepower to twice base RPM.Continuous duty at 40° C ambient.Optimized for operation with IGBT inverter (NEMA Design A).Normally closed thermostats (one per phase).Removable Rigid Base on some models, as noted.Ball bearing.Encoder and brake provisions included on opposite drive end (maximum 10 Ib-ft brake, see Modifications and/or accessory Kits sections).UL Recognized and CSA Certified.Three year warranty.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Approx Weight
146 lbs
Specifications Category
Inverter Duty
Specifications Dim C
20.54
Specifications Frame
213TC
Specifications Full Load Ampere Fla
8.6 amps
Specifications Horsepower
7 1/2
Specifications Manufacturer
Marathon Electric
Specifications Model Number
213THTL7736
Specifications Motor Type
Black Max® Vector Duty - 1000:1 Constant Torque
Specifications Multiplier Symbol
E3
Specifications Over Load
TSTAT
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Stock Model
Yes
Specifications Style
Totally Enclosed Non-Ventilated, C-Face with Rigid Base
Specifications Voltage
575 volts
