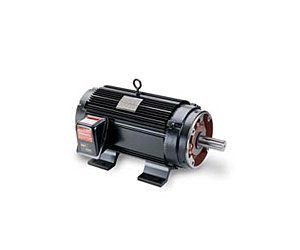

Marathon Electric Motors - Black Max Inverter Duty, TENV, C-Face Footed
Marathon Electric Motors - Black Max Inverter Duty, TENV, C-Face Footed
SKU:ELE-655b85
Reliable Black Max Inverter Duty Motor for industrial applications, offering 1000:1 Constant Torque speed range & MAX GUARD® Class F insulation.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Marathon Electric Motors - Black Max Inverter Duty, TENV, C-Face Footed
$799.99
Quantity: 1
Claim Your Seller Account
Marathon Electric Motors - Black Max Inverter Duty, TENV, C-Face Footed
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Black Max Inverter Duty Marathon Electric Motor is expertly engineered for inverter or vector applications requiring up to a 1000:1 Constant Torque speed range. Ideal for industrial settings like material handling, machine tools, and textile processing, this motor operates with MAX GUARD® Class F insulation, ensuring continuous duty at 40°C ambient temperature. With features like Constant Horsepower to twice base RPM and compatibility with IGBT inverters, this motor delivers reliable performance in dusty environments. It comes with UL Recognition, CSA Certification, and a three-year warranty.
Product Specifications
Applications 0
Material HandlingMachine ToolsConveyorsCranesHoistsMetal ProcessingTest StandsPumpsCompressorsTextiles ProcessingOther Industrial Machinery
Features 0
MAX GUARD® Class F insulation system.Constant Torque operation from 0 to base speed on Vector Drive.Constant Horsepower to twice base RPM.Continuous duty at 40° C ambient.Optimized for operation with IGBT inverter (NEMA Design A).Normally closed thermostats (one per phase).Removable Rigid Base on some models, as noted.Ball bearing.Encoder and brake provisions included on opposite drive end (maximum 10 Ib-ft brake, see Modifications and/or accessory Kits sections).UL Recognized and CSA Certified.Three year warranty.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Approx Weight
96 lbs
Specifications Category
Inverter Duty
Specifications Dim C
17.39
Specifications Frame
182TC
Specifications Full Load Ampere Fla
4.2 amps | 8.4 amps
Specifications Horsepower
3
Specifications Manufacturer
Marathon Electric
Specifications Model Number
182THTL7726
Specifications Motor Type
Black Max® Vector Duty - 1000:1 Constant Torque
Specifications Multiplier Symbol
E3
Specifications Over Load
TSTAT
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Stock Model
Yes
Specifications Style
Totally Enclosed Non-Ventilated, C-Face with Rigid Base
Specifications Voltage
230 volts | 460 volts
