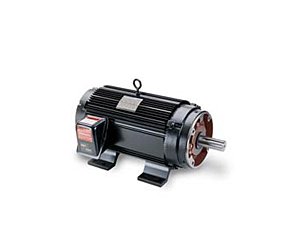

Marathon Electric Motors Inverter Duty 256TC
Marathon Electric Motors Inverter Duty 256TC
SKU:ELE-034890
Powerful and reliable Black Max Inverter Duty Motor with 1000:1 Constant Torque speed range for industrial applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Marathon Electric Motors Inverter Duty 256TC
$899.99
Quantity: 1
Claim Your Seller Account
Marathon Electric Motors Inverter Duty 256TC
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Black Max Inverter Duty Marathon Electric Motor is expertly designed for inverter or vector applications requiring a 1000:1 Constant Torque speed range. With a Totally Enclosed Non-Ventilated, C-Face design and a 256TC frame, this motor operates at 1200 rpm with 10 horsepower. It features a MAX GUARD® Class F insulation system, continuous duty at 40°C ambient temperature, and is optimized for operation with IGBT inverters. Additionally, this motor comes with normally closed thermostats, a three-year warranty, and meets UL and CSA standards.
Product Specifications
Applications 0
Material HandlingMachine ToolsConveyorsCranesHoistsMetal ProcessingTest StandsPumpsCompressorsTextiles ProcessingOther Industrial Machinery
Features 0
MAX GUARD® Class F insulation system.Constant Torque operation from 0 to base speed on Vector Drive.Constant Horsepower to twice base RPM.Continuous duty at 40° C ambient.Optimized for operation with IGBT inverter (NEMA Design A).Normally closed thermostats (one per phase).Removable Rigid Base on some models, as noted.Ball bearing.Encoder and brake provisions included on opposite drive end (maximum 10 Ib-ft brake, see Modifications and/or accessory Kits sections).UL Recognized and CSA Certified.Three year warranty.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Approx Weight
203 lbs
Specifications Category
Inverter Duty
Specifications Dim C
28.87
Specifications Frame
256TC
Specifications Full Load Ampere Fla
14.0 amps | 28.0 amps
Specifications Horsepower
10
Specifications Manufacturer
Marathon Electric
Specifications Model Number
256THTL5776
Specifications Motor Type
Black Max® Vector Duty - 1000:1 Constant Torque
Specifications Multiplier Symbol
E3
Specifications Over Load
TSTAT
Specifications Phase
3
Specifications Rpm
1200 rpm
Specifications Stock Model
Yes
Specifications Style
Totally Enclosed Non-Ventilated, C-Face with Rigid Base
Specifications Voltage
230 volts | 460 volts
