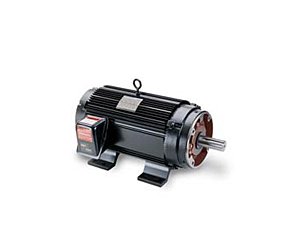

Marathon Electric Motors Inverter Duty Black Max 10 HP 575V 3-Phase Motor
Marathon Electric Motors Inverter Duty Black Max 10 HP 575V 3-Phase Motor
SKU:ELE-897eb6
High-performance Black Max Inverter Duty motor for industrial applications, offering 1000:1 Constant Torque and compatibility with IGBT inverters.
Regular price
$1,650.00
Regular price
Sale price
$1,650.00
Unit price
per
Initiate Order
Marathon Electric Motors Inverter Duty Black Max 10 HP 575V 3-Phase Motor
$1,650.00
Quantity: 1
Claim Your Seller Account
Marathon Electric Motors Inverter Duty Black Max 10 HP 575V 3-Phase Motor
$1,650.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Black Max Inverter Duty motor by Marathon Electric is designed for demanding applications requiring a 1000:1 Constant Torque speed range. With MAX GUARD® Class F insulation, this motor offers constant torque operation, continuous duty at 40°C ambient temperature, and compatibility with IGBT inverters. Featuring a Totally Enclosed Non-Ventilated, C-Face design, it is ideal for use in dusty environments across various industries such as material handling, machine tools, and more. With UL and CSA certifications, this motor ensures reliability and performance for your industrial machinery needs.
Product Specifications
Applications 0
Material HandlingMachine ToolsConveyorsCranesHoistsMetal ProcessingTest StandsPumpsCompressorsTextiles ProcessingOther Industrial Machinery
Features 0
MAX GUARD® Class F insulation system.Constant Torque operation from 0 to base speed on Vector Drive.Constant Horsepower to twice base RPM.Continuous duty at 40° C ambient.Optimized for operation with IGBT inverter (NEMA Design A).Normally closed thermostats (one per phase).Removable Rigid Base on some models, as noted.Ball bearing.Encoder and brake provisions included on opposite drive end (maximum 10 Ib-ft brake, see Modifications and/or accessory Kits sections).UL Recognized and CSA Certified.Three year warranty.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Approx Weight
159 lbs
Specifications Category
Inverter Duty
Specifications Dim C
24.03
Specifications Frame
215TC
Specifications Full Load Ampere Fla
10.8 amps
Specifications Horsepower
10
Specifications Manufacturer
Marathon Electric
Specifications Model Number
215THTL7736
Specifications Motor Type
Black Max® Vector Duty - 1000:1 Constant Torque
Specifications Multiplier Symbol
E3
Specifications Over Load
TSTAT
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Stock Model
Yes
Specifications Style
Totally Enclosed Non-Ventilated, C-Face with Rigid Base
Specifications Voltage
575 volts
