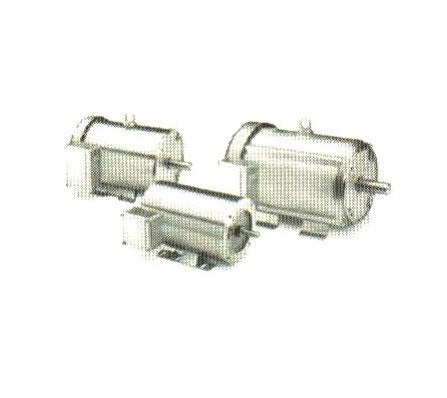

Marathon Electric Motors Powerwash SXT-Plus Washdown Duty 3/4 HP
Marathon Electric Motors Powerwash SXT-Plus Washdown Duty 3/4 HP
SKU:ELE-82a2b2
Marathon Electric Motors Powerwash SXT-Plus: Ideal for pharmaceutical & food processing industries, BISSC certified, UL & CSA listed.
Regular price
$699.00
Regular price
Sale price
$699.00
Unit price
per
Initiate Order
Marathon Electric Motors Powerwash SXT-Plus Washdown Duty 3/4 HP
$699.00
Quantity: 1
Claim Your Seller Account
Marathon Electric Motors Powerwash SXT-Plus Washdown Duty 3/4 HP
$699.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Motors Powerwash SXT-Plus is designed for demanding environments like pharmaceutical and food processing industries with stringent sanitation requirements. This washdown duty motor features a robust, stainless steel construction and is ideal for applications exposed to nitric acid and caustic lye. With BISSC certification for the baking industry, this motor offers durability, efficiency, and superior corrosion resistance. It is UL Recognized, CSA Certified, CE Marked, and equipped with features like MAX GUARD® Class F insulation system and Viton® seals for optimal performance.
Product Specifications
Features 0
Suitable for use on VFD, 10:1 Variable torque, 6:1 Constant torque, 1.0 Service factor.MAX GUARD® Class F insulation system.300 Series Stainless steel external construction: frame, endshields, shaft, conduit box, box cover, base and hardware for superior corrosion resistance.Double sealed ball bearings with moisture resistant, high temperature grease.Fully coated interior to guard against moisture and corrosion.100% Paint-free construction.Viton® o-rings, shaft seals, and gaskets for superior sealing against chemicals.Hydrophic breather in OP endshield and conduit box equalize air pressure.Nameplate information laser etched on frame.BISSC Certified for baking industry.UL Recognized and CSA Certified, CE Mark.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Approx Weight
40 lbs
Specifications Category
Washdown Duty
Specifications Dim C
11.71
Specifications Frame
56HC
Specifications Full Load Ampere Fla
1.1 amps | 2.2-2.2 amps
Specifications Horsepower
3/4
Specifications Manufacturer
Marathon Electric
Specifications Model Number
56T17V5348
Specifications Motor Type
Powerwash⢠SXT-Plus Washdown Duty, Three Phase
Specifications Multiplier Symbol
F3
Specifications Nominal Efficiency
83.6
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Service Factor
1.00
Specifications Stock Model
Yes
Specifications Style
All Stainless Steel, Totally Enclosed, C-Face with Rigid Base
Specifications Voltage
208-230 volts | 460 volts
