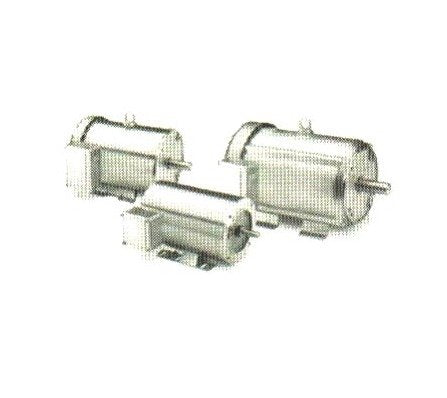

Marathon Electric Motors Powerwash SXT-Plus Washdown Duty Motor
Marathon Electric Motors Powerwash SXT-Plus Washdown Duty Motor
SKU:ELE-2ac79b
Powerwash SXT-Plus Washdown Duty Motor for pharmaceutical, food processing, and chemical industries. UL, CSA, CE certified.
Regular price
$789.99
Regular price
Sale price
$789.99
Unit price
per
Initiate Order
Marathon Electric Motors Powerwash SXT-Plus Washdown Duty Motor
$789.99
Quantity: 1
Claim Your Seller Account
Marathon Electric Motors Powerwash SXT-Plus Washdown Duty Motor
$789.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Powerwash SXT-Plus Washdown Duty Motor is designed for stringent sanitation needs in pharmaceutical, food processing, and chemical industries. With a robust stainless steel construction, double-sealed bearings, and Viton® seals, this motor offers superior corrosion resistance and chemical sealing. It is BISSC certified for baking industry standards and meets UL, CSA, and CE requirements. Suitable for VFD use with a service factor of 1.00, this motor ensures reliable operation even in challenging environments.
Product Specifications
Features 0
Suitable for use on VFD, 10:1 Variable torque, 6:1 Constant torque, 1.0 Service factor.MAX GUARD® Class F insulation system.300 Series Stainless steel external construction: frame, endshields, shaft, conduit box, box cover, base and hardware for superior corrosion resistance.Double sealed ball bearings with moisture resistant, high temperature grease.Fully coated interior to guard against moisture and corrosion.100% Paint-free construction.Viton® o-rings, shaft seals, and gaskets for superior sealing against chemicals.Hydrophic breather in OP endshield and conduit box equalize air pressure.Nameplate information laser etched on frame.BISSC Certified for baking industry.UL Recognized and CSA Certified, CE Mark.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Approx Weight
34 lbs
Specifications Category
Washdown Duty
Specifications Dim C
12.54
Specifications Frame
56HC
Specifications Full Load Ampere Fla
.7 amps | 1.4-1.4 amps
Specifications Horsepower
1/2
Specifications Manufacturer
Marathon Electric
Specifications Model Number
56T17V5347
Specifications Motor Type
Powerwash⢠SXT-Plus Washdown Duty, Three Phase
Specifications Multiplier Symbol
F3
Specifications Nominal Efficiency
78.0
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Service Factor
1.00
Specifications Stock Model
Yes
Specifications Style
All Stainless Steel, Totally Enclosed, C-Face with Rigid Base
Specifications Voltage
208-230 volts | 460 volts
