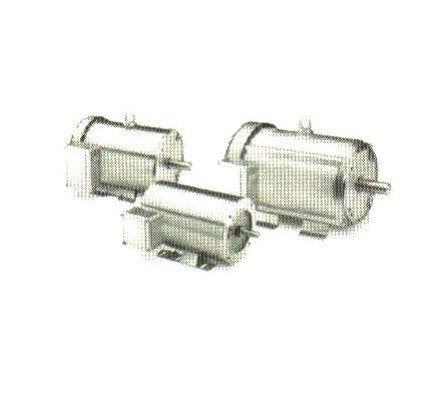

Marathon Electric Motors Powerwash SXT-Plus Washdown Duty Stainless Steel
Marathon Electric Motors Powerwash SXT-Plus Washdown Duty Stainless Steel
SKU:ELE-32493d
Reliable stainless steel washdown duty motor for pharmaceutical and food processing industries. BISSC, UL, CSA, CE certified.
Regular price
$629.99
Regular price
Sale price
$629.99
Unit price
per
Initiate Order
Marathon Electric Motors Powerwash SXT-Plus Washdown Duty Stainless Steel
$629.99
Quantity: 1
Claim Your Seller Account
Marathon Electric Motors Powerwash SXT-Plus Washdown Duty Stainless Steel
$629.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Motors Powerwash SXT-Plus is the ultimate solution for demanding industries like pharmaceuticals and food processing. With an all stainless steel construction, double sealed bearings, and Class F insulation, this motor ensures reliability and superior corrosion resistance. BISSC certified for baking industry standards, and UL, CSA, and CE certifications guarantee compliance and quality performance.
Product Specifications
Features 0
Suitable for use on VFD, 10:1 Variable torque, 6:1 Constant torque, 1.0 Service factor.MAX GUARD® Class F insulation system.300 Series Stainless steel external construction: frame, endshields, shaft, conduit box, box cover, base and hardware for superior corrosion resistance.Double sealed ball bearings with moisture resistant, high temperature grease.Fully coated interior to guard against moisture and corrosion.100% Paint-free construction.Viton® o-rings, shaft seals, and gaskets for superior sealing against chemicals.Hydrophic breather in OP endshield and conduit box equalize air pressure.Nameplate information laser etched on frame.BISSC Certified for baking industry.UL Recognized and CSA Certified, CE Mark.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Approx Weight
47 lbs
Specifications Category
Washdown Duty
Specifications Dim C
14.25
Specifications Frame
145TC
Specifications Full Load Ampere Fla
3.0 amps | 6.0-6.0 amps
Specifications Horsepower
2
Specifications Manufacturer
Marathon Electric
Specifications Model Number
145TTWD4027
Specifications Motor Type
Powerwash⢠SXT-Plus Washdown Duty, Three Phase
Specifications Multiplier Symbol
F3
Specifications Nominal Efficiency
84.0
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Service Factor
1.00
Specifications Stock Model
Yes
Specifications Style
All Stainless Steel, Totally Enclosed, C-Face with Rigid Base
Specifications Voltage
208-230 volts | 460 volts
