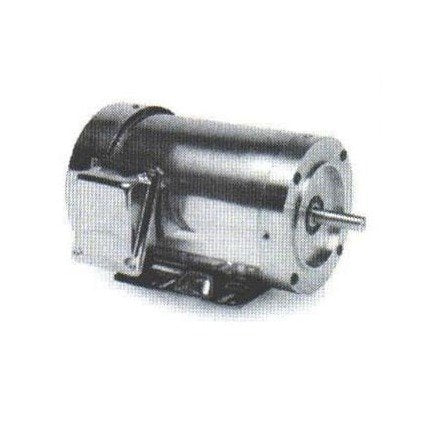

Marathon Electric Motors Powerwash SXT - Stainless Steel Washdown Duty
Marathon Electric Motors Powerwash SXT - Stainless Steel Washdown Duty
SKU:ELE-00ee63
Marathon Electric Motors Powerwash SXT - Stainless Steel Motor for Sanitary Environments
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Marathon Electric Motors Powerwash SXT - Stainless Steel Washdown Duty
$899.99
Quantity: 1
Claim Your Seller Account
Marathon Electric Motors Powerwash SXT - Stainless Steel Washdown Duty
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Motors Powerwash SXT is specially designed for rigorous sanitary environments like pharmaceutical, food processing, and chemical industries. With a 10:1 variable torque and 20:1 constant torque, this motor boasts a maximum efficiency of 82.5. Its all stainless steel, totally enclosed construction with double sealed ball bearings and moisture-resistant grease ensures superior corrosion resistance and durability. UL Recognized and CSA Certified, this motor meets the highest standards for reliability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
Pharmaceutical IndustriesFood Processing IndustriesChemical Processing Industries
Features 0
10:1 Variable torque, 20:1 constant torque, 1.0 service factor on VFD.MAX GUARD" Class F insulation system.300 Series Stainless steel external construction: frame, endshields, shaft, conduit box cover, base and hardware for superior corrosion resistance.Double sealed ball bearings with moisture resistant, high temperature grease.Fully coated interior to guard against moisture and corrosion.100% Paint-free construction.Four condensate drains in each endshield.Fully gasketed conduit box, rubber covered oil seals on both shaft extensions.Rated 60/50 hertz, 190/380 volt at next lower horsepower.Nameplate information laser etched on frame.UL Recognized and CSA Certified, CE Mark.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Approx Weight
30 lbs
Specifications Category
Washdown Duty
Specifications Dim C
9.40
Specifications Frame
56C
Specifications Full Load Ampere Fla
2 amps | 2.4-2.3 amps
Specifications Horsepower
3/4
Specifications Manufacturer
Marathon Electric
Specifications Model Number
56T17VD5331
Specifications Motor Type
Powerwash⢠SXT Washdown Duty, Three Phase
Specifications Multiplier Symbol
F3
Specifications Nominal Efficiency
82.5
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Service Factor
1.00
Specifications Stock Model
Yes
Specifications Style
All Stainless Steel, Totally Enclosed, C-Face
Specifications Voltage
208-230 volts | 460 volts
