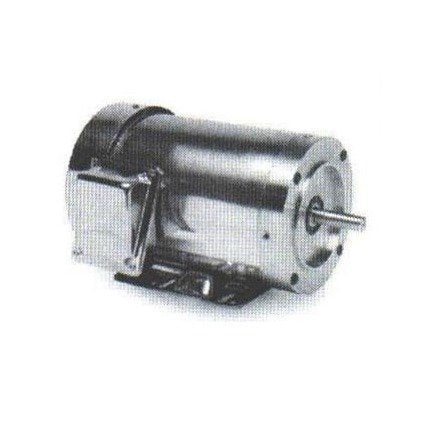

Marathon Electric Motors - Powerwash SXT Stainless Steel Washdown Duty Motor
Marathon Electric Motors - Powerwash SXT Stainless Steel Washdown Duty Motor
SKU:ELE-d36aae
Experience ultimate sanitation with the Marathon Powerwash SXT Stainless Steel Motor for pharmaceutical, food, and chemical industries.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Marathon Electric Motors - Powerwash SXT Stainless Steel Washdown Duty Motor
$899.99
Quantity: 1
Claim Your Seller Account
Marathon Electric Motors - Powerwash SXT Stainless Steel Washdown Duty Motor
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Powerwash SXT Washdown Duty Three Phase Stainless Steel Marathon Electric Motor is designed for maximum sanitation needs in pharmaceutical, food, and chemical processing industries. With features like all stainless steel construction, double-sealed ball bearings, and a MAX GUARD insulation system, this motor offers superior corrosion resistance, moisture protection, and high efficiency. It meets UL, CSA, and CE certifications for quality assurance.
Product Specifications
Applications 0
Pharmaceutical IndustriesFood Processing IndustriesChemical Processing Industries
Features 0
10:1 Variable torque, 20:1 constant torque, 1.0 service factor on VFD.MAX GUARD" Class F insulation system.300 Series Stainless steel external construction: frame, endshields, shaft, conduit box cover, base and hardware for superior corrosion resistance.Double sealed ball bearings with moisture resistant, high temperature grease.Fully coated interior to guard against moisture and corrosion.100% Paint-free construction.Four condensate drains in each endshield.Fully gasketed conduit box, rubber covered oil seals on both shaft extensions.Rated 60/50 hertz, 190/380 volt at next lower horsepower.Nameplate information laser etched on frame.UL Recognized and CSA Certified, CE Mark.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Approx Weight
42 lbs
Specifications Category
Washdown Duty
Specifications Dim C
13.40
Specifications Frame
56C
Specifications Full Load Ampere Fla
4.4 amps | 5.8-5.4 amps
Specifications Horsepower
1 1/2
Specifications Manufacturer
Marathon Electric
Specifications Model Number
56T17WD5331
Specifications Motor Type
Powerwash⢠SXT Washdown Duty, Three Phase
Specifications Multiplier Symbol
F3
Specifications Nominal Efficiency
84.0
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Service Factor
1.00
Specifications Stock Model
Yes
Specifications Style
All Stainless Steel, Totally Enclosed, C-Face
Specifications Voltage
208-230 volts | 460 volts
