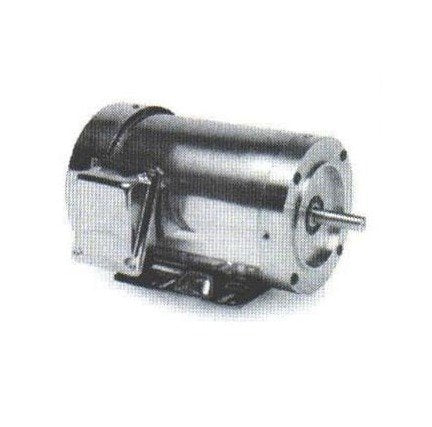

Marathon Electric Motors - Washdown Duty Stainless Steel
Marathon Electric Motors - Washdown Duty Stainless Steel
SKU:ELE-b6a826
Powerful and durable Marathon Electric Motors for pharmaceutical, food, and chemical industries. UL, CSA, CE certified.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Marathon Electric Motors - Washdown Duty Stainless Steel
$599.99
Quantity: 1
Claim Your Seller Account
Marathon Electric Motors - Washdown Duty Stainless Steel
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Powerwash SXT Washdown Duty Electric Motor by Marathon Electric is designed for the stringent requirements of pharmaceutical, food, and chemical processing industries. With a 10:1 variable torque and a 20:1 constant torque, this motor offers exceptional performance. Constructed with a MAX GUARD™ Class F insulation system and 300 Series stainless steel components, it ensures superior corrosion resistance. Moreover, it meets UL, CSA, and CE standards for added reliability.
Product Specifications
Applications 0
Pharmaceutical IndustriesFood Processing IndustriesChemical Processing Industries
Features 0
10:1 Variable torque, 20:1 constant torque, 1.0 service factor on VFD.MAX GUARD" Class F insulation system.300 Series Stainless steel external construction: frame, endshields, shaft, conduit box cover, base and hardware for superior corrosion resistance.Double sealed ball bearings with moisture resistant, high temperature grease.Fully coated interior to guard against moisture and corrosion.100% Paint-free construction.Four condensate drains in each endshield.Fully gasketed conduit box, rubber covered oil seals on both shaft extensions.Rated 60/50 hertz, 190/380 volt at next lower horsepower.Nameplate information laser etched on frame.UL Recognized and CSA Certified, CE Mark.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Approx Weight
30 lbs
Specifications Category
Washdown Duty
Specifications Dim C
9.40
Specifications Frame
56C
Specifications Full Load Ampere Fla
1.2 amps | 1.2-1.3 amps
Specifications Horsepower
1/3
Specifications Manufacturer
Marathon Electric
Specifications Model Number
56T17VD5329
Specifications Motor Type
Powerwash⢠SXT Washdown Duty, Three Phase
Specifications Multiplier Symbol
F3
Specifications Nominal Efficiency
78.5
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Service Factor
1.00
Specifications Stock Model
Yes
Specifications Style
All Stainless Steel, Totally Enclosed, C-Face
Specifications Voltage
208-230 volts | 460 volts
