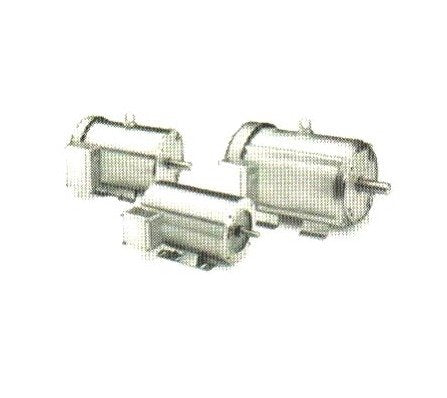

Marathon Electric Powerwash SXT-Plus Washdown Duty Electric Motor
Marathon Electric Powerwash SXT-Plus Washdown Duty Electric Motor
SKU:ELE-c79cd1
Get the Marathon Electric Powerwash SXT-Plus Washdown Duty Motor for ultimate sanitation and durability in pharmaceutical and food processing industries.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Marathon Electric Powerwash SXT-Plus Washdown Duty Electric Motor
$1,899.99
Quantity: 1
Claim Your Seller Account
Marathon Electric Powerwash SXT-Plus Washdown Duty Electric Motor
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Powerwash SXT-Plus Washdown Duty Electric Motor is engineered for optimal performance in demanding industries like pharmaceutical and food processing. This motor features a Powerwash™ SXT-Plus Washdown Duty design in all stainless steel, totally enclosed C-Face with rigid base construction. With a 10 horsepower capacity, 1800 RPM, and BISSC certification, it ensures top-notch sanitation and durability. Additionally, its advanced features like MAX GUARD® insulation, 300 Series Stainless Steel components, and Viton® seals provide superior corrosion resistance and chemical protection. UL Recognized and CSA Certified, this motor is a reliable choice for industries with strict sanitation requirements.
Product Specifications
Features 0
Suitable for use on VFD, 10:1 Variable torque, 6:1 Constant torque, 1.0 Service factor.MAX GUARD® Class F insulation system.300 Series Stainless steel external construction: frame, endshields, shaft, conduit box, box cover, base and hardware for superior corrosion resistance.Double sealed ball bearings with moisture resistant, high temperature grease.Fully coated interior to guard against moisture and corrosion.100% Paint-free construction.Viton® o-rings, shaft seals, and gaskets for superior sealing against chemicals.Hydrophic breather in OP endshield and conduit box equalize air pressure.Nameplate information laser etched on frame.BISSC Certified for baking industry.UL Recognized and CSA Certified, CE Mark.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Approx Weight
170 lbs
Specifications Category
Washdown Duty
Specifications Dim C
18.69
Specifications Frame
215TC
Specifications Full Load Ampere Fla
13.0 amps | 26.0-26.0 amps
Specifications Horsepower
10
Specifications Manufacturer
Marathon Electric
Specifications Model Number
215TTWD14031
Specifications Motor Type
Powerwash⢠SXT-Plus Washdown Duty, Three Phase
Specifications Multiplier Symbol
F3
Specifications Nominal Efficiency
89.5
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Service Factor
1.00
Specifications Stock Model
Yes
Specifications Style
All Stainless Steel, Totally Enclosed, C-Face with Rigid Base
Specifications Voltage
208-230 volts | 460 volts
