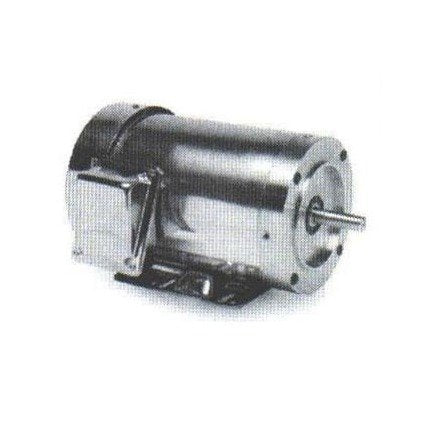

Marathon Electric Powerwash SXT Stainless Steel Washdown Duty Motor
Marathon Electric Powerwash SXT Stainless Steel Washdown Duty Motor
SKU:ELE-547704
Marathon Electric stainless steel washdown motor for pharmaceutical, food processing, and chemical industries. UL Recognized & CSA Certified.
Regular price
$449.99
Regular price
Sale price
$449.99
Unit price
per
Initiate Order
Marathon Electric Powerwash SXT Stainless Steel Washdown Duty Motor
$449.99
Quantity: 1
Claim Your Seller Account
Marathon Electric Powerwash SXT Stainless Steel Washdown Duty Motor
$449.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Powerwash SXT Stainless Steel Washdown Duty Motor is designed for stringent sanitation requirements in pharmaceutical, food processing, and chemical industries. With a 300 Series stainless steel construction, this motor offers superior corrosion resistance. It features a MAX GUARD Class F insulation system, double-sealed ball bearings, and a fully gasketed conduit box for enhanced protection. This motor is UL Recognized, CSA Certified, and CE Marked, ensuring reliability and compliance with industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
Pharmaceutical IndustriesFood Processing IndustriesChemical Processing Industries
Features 0
10:1 Variable torque, 20:1 constant torque, 1.0 service factor on VFD.MAX GUARD" Class F insulation system.300 Series Stainless steel external construction: frame, endshields, shaft, conduit box cover, base and hardware for superior corrosion resistance.Double sealed ball bearings with moisture resistant, high temperature grease.Fully coated interior to guard against moisture and corrosion.100% Paint-free construction.Four condensate drains in each endshield.Fully gasketed conduit box, rubber covered oil seals on both shaft extensions.Rated 60/50 hertz, 190/380 volt at next lower horsepower.Nameplate information laser etched on frame.UL Recognized and CSA Certified, CE Mark.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Approx Weight
32 lbs
Specifications Category
Washdown Duty
Specifications Dim C
9.40
Specifications Frame
56C
Specifications Full Load Ampere Fla
1.5-1.6 amps | 1.6 amps
Specifications Horsepower
1/2
Specifications Manufacturer
Marathon Electric
Specifications Model Number
56T17VD5330
Specifications Motor Type
Powerwash⢠SXT Washdown Duty, Three Phase
Specifications Multiplier Symbol
F3
Specifications Nominal Efficiency
81.5
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Service Factor
1.00
Specifications Stock Model
Yes
Specifications Style
All Stainless Steel, Totally Enclosed, C-Face
Specifications Voltage
208-230 volts | 460 volts
