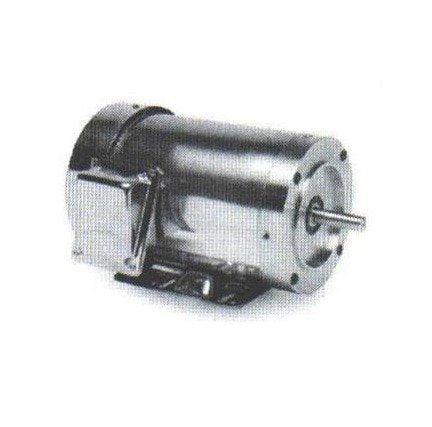

Marathon Electric Powerwash SXT Washdown Duty Motor
Marathon Electric Powerwash SXT Washdown Duty Motor
SKU:ELE-25771b
High-performance stainless steel motor for pharmaceutical, food processing, and chemical industries. Reliable, efficient, and compliant with top industry standards.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Marathon Electric Powerwash SXT Washdown Duty Motor
$699.99
Quantity: 1
Claim Your Seller Account
Marathon Electric Powerwash SXT Washdown Duty Motor
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Powerwash SXT Washdown Duty Motor is designed for rigorous applications in pharmaceutical, food processing, and chemical industries with stringent sanitation requirements. Featuring a stainless steel construction, totally enclosed design, and C-Face with rigid base, this motor ensures reliability in harsh environments. With a high RPM of 3600, voltage options of 208-230V and 460V, and 3/4 horsepower, it offers exceptional performance and efficiency. Additionally, it boasts industry-leading features such as a MAX GUARD Class F insulation system, double sealed ball bearings, and UL Recognized and CSA Certified compliance.
Product Specifications
Applications 0
Pharmaceutical IndustriesFood Processing IndustriesChemical Processing Industries (nitric acid and caustic lye may be present)
Features 0
10:1 Variable torque, 20:1 constant torque, 1.0 service factor on VFD.MAX GUARD" Class F insulation system.300 Series Stainless steel external construction: frame, endshields, shaft, conduit box cover, base and hardware for superior corrosion resistance.Double sealed ball bearings with moisture resistant, high temperature grease.Fully coated interior to guard against moisture and corrosion.100% Paint-free construction.Four condensate drains in each endshield.Fully gasketed conduit box, rubber covered oil seals on both shaft extensions.Rated 60/50 hertz, 190/380 volt at next lower horsepower.Nameplate information laser etched on frame.UL Recognized and CSA Certified, CE Mark.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Approx Weight
29 lbs
Specifications Category
Washdown Duty
Specifications Dim C
9.40
Specifications Frame
56C
Specifications Full Load Ampere Fla
1.0 amps | 2.2-2.0 amps
Specifications Horsepower
3/4
Specifications Manufacturer
Marathon Electric
Specifications Model Number
56T34VD5303
Specifications Motor Type
Powerwash⢠SXT Washdown Duty, Three Phase
Specifications Multiplier Symbol
F3
Specifications Nominal Efficiency
78.5
Specifications Phase
3
Specifications Rpm
3600 rpm
Specifications Service Factor
1.00
Specifications Stock Model
Yes
Specifications Style
All Stainless Steel, Totally Enclosed, C-Face with Rigid Base
Specifications Voltage
208-230 volts | 460 volts
