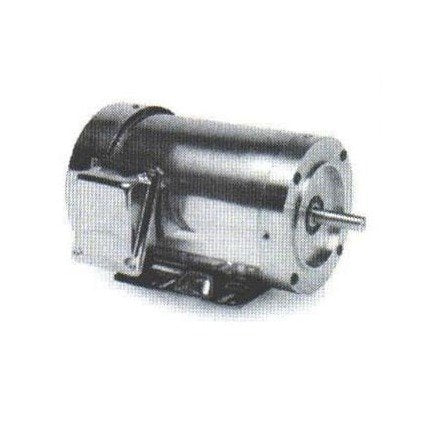

Marathon Electric Powerwash SXT Washdown Duty Motor
Marathon Electric Powerwash SXT Washdown Duty Motor
SKU:ELE-7de5df
Marathon Electric Powerwash⢠SXT Motor - Ideal for demanding industries with superior corrosion resistance & UL recognized.
Regular price
$869.99
Regular price
Sale price
$869.99
Unit price
per
Initiate Order
Marathon Electric Powerwash SXT Washdown Duty Motor
$869.99
Quantity: 1
Claim Your Seller Account
Marathon Electric Powerwash SXT Washdown Duty Motor
$869.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Powerwash⢠SXT Washdown Duty Motor is designed for pharmaceutical, food processing, and chemical industries with stringent sanitation requirements. Featuring a 10:1 variable torque and 20:1 constant torque, this motor is ideal for environments exposed to nitric acid and caustic lye. With a 100% paint-free construction, 300 Series stainless steel components, and UL Recognized and CSA Certified compliance, it offers superior corrosion resistance, moisture protection, and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
Pharmaceutical IndustriesFood Processing IndustriesChemical Processing Industries (nitric acid and caustic lye may be present)
Features 0
10:1 Variable torque, 20:1 constant torque, 1.0 service factor on VFD.MAX GUARD" Class F insulation system.300 Series Stainless steel external construction: frame, endshields, shaft, conduit box cover, base and hardware for superior corrosion resistance.Double sealed ball bearings with moisture resistant, high temperature grease.Fully coated interior to guard against moisture and corrosion.100% Paint-free construction.Four condensate drains in each endshield.Fully gasketed conduit box, rubber covered oil seals on both shaft extensions.Rated 60/50 hertz, 190/380 volt at next lower horsepower.Nameplate information laser etched on frame.UL Recognized and CSA Certified, CE Mark.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Approx Weight
40 lbs
Specifications Category
Washdown Duty
Specifications Dim C
12.13
Specifications Frame
56HC
Specifications Full Load Ampere Fla
1.5 amps | 3.2-3.0 amps
Specifications Horsepower
1
Specifications Manufacturer
Marathon Electric
Specifications Model Number
56T17WD5326
Specifications Motor Type
Powerwash⢠SXT Washdown Duty, Three Phase
Specifications Multiplier Symbol
F3
Specifications Nominal Efficiency
82.5
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Service Factor
1.00
Specifications Stock Model
Yes
Specifications Style
All Stainless Steel, Totally Enclosed, C-Face with Rigid Base
Specifications Voltage
208-230 volts | 460 volts
