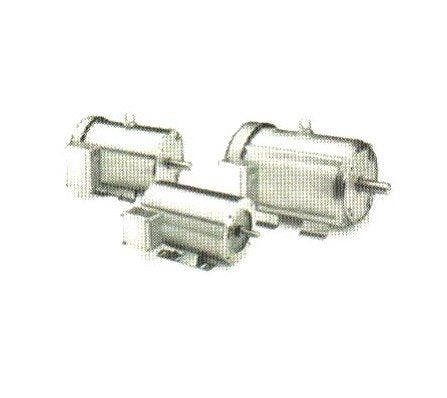

Marathon Electric Washdown Duty Stainless Motor
Marathon Electric Washdown Duty Stainless Motor
SKU:ELE-10d3bc
Engineered for pharmaceutical & food industries, this BISSC Certified motor offers stainless steel construction & superior corrosion resistance.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Marathon Electric Washdown Duty Stainless Motor
$1,899.99
Quantity: 1
Claim Your Seller Account
Marathon Electric Washdown Duty Stainless Motor
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Electric Washdown Duty Stainless Motor is engineered for the pharmaceutical and food processing industries, meeting stringent sanitation requirements. Featuring a Powerwash™ SXT-Plus Washdown Duty design with all stainless steel construction, it withstands severe chemical environments with nitric acid and caustic lye. BISSC Certified for baking industry standards, this motor offers superior corrosion resistance, double-sealed ball bearings, and a MAX GUARD® Class F insulation system.
Product Specifications
Features 0
Suitable for use on VFD, 10:1 Variable torque, 6:1 Constant torque, 1.0 Service factor.MAX GUARD® Class F insulation system.300 Series Stainless steel external construction: frame, endshields, shaft, conduit box, box cover, base and hardware for superior corrosion resistance.Double sealed ball bearings with moisture resistant, high temperature grease.Fully coated interior to guard against moisture and corrosion.100% Paint-free construction.Viton® o-rings, shaft seals, and gaskets for superior sealing against chemicals.Hydrophic breather in OP endshield and conduit box equalize air pressure.Nameplate information laser etched on frame.BISSC Certified for baking industry.UL Recognized and CSA Certified, CE Mark.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Approx Weight
153 lbs
Specifications Category
Washdown Duty
Specifications Dim C
18.69
Specifications Frame
213TC
Specifications Full Load Ampere Fla
10.2 amps | 20.4-20.4 amps
Specifications Horsepower
7 1/2
Specifications Manufacturer
Marathon Electric
Specifications Model Number
213TTWD14031
Specifications Motor Type
Powerwash⢠SXT-Plus Washdown Duty, Three Phase
Specifications Multiplier Symbol
F3
Specifications Nominal Efficiency
89.5
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Service Factor
1.00
Specifications Stock Model
Yes
Specifications Style
All Stainless Steel, Totally Enclosed, C-Face with Rigid Base
Specifications Voltage
208-230 volts | 460 volts
